Axel

Axel is the new LED photovoltaic streetlight from EuLux with an elegant and innovative design.
The new Axel are completely “Made in Italy” products and feature very high energy efficiency, low maintenance and very long life service.

  • Tipology

    Photovoltaic streetlight

  • Category

    Street Lighting

Open Project
Technical features

Axel LED photovoltaic streetlight.

Description

Depending on the required brightness, there is a choice of three(3) models: Axel20, Axel40 and Axel55. The three(3) models are designed and sized to achieve an autonomy of about five(5) days in total absence of light. In addition by taking advantage of 166lm/W LED technology, the Axel20 version delivers higher brightness than a MBF125W or SAP70W.

Features

Specifiche Tecniche

BodyMade of die-cast aluminum with low copper content.
StructureMade of galvanized iron and finished in epoxy powered resistant to UV rays and weathering.
Color temperature5000K (choice: 3000K, 4000K).
BatteriesHermetic GEL batteries with characteristics of 10 to 15 years design life, long cyclic life, high discharge capacity.
MountingPole-top mounting for poles with a maximum diameter of 89 mm.
LED efficiency166lm/W
PolePole made of galvanized steel with a minimum outer diameter of 138 mm at the base and 89 mm at the highest point, 4mm (supplied upon request).
BracketGalvanized steel arm length L=100cm. Pole attachment for 93mm inner diameter.
WarrantyThe 5-year warranty does not include the battery and control unit for which the warranty as per law applies.
Reference standardsEN 60598-1, EN 62471, EN 10819, UNI 11248 – EN 13201
Guidelines2011/65/CE, 2004/108/CE

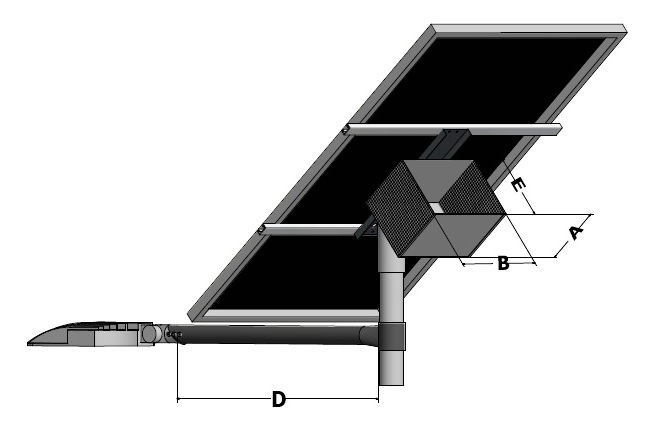

Structure and box dimensions

Model
AXEL20A= 246mm; B= 370mm; C= 102mm (external diameter); D= 980mm; E= 263mm;
AXEL40/55A= 246mm; B= 370mm; C= 102mm (external diameter); D= 980mm; E= 263mm;

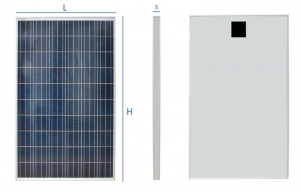

Photovoltaic module dimensions

Photovoltaic PanelDimensions (LxHxS mm)
90WP543x1072x35
250WP992x1650x38

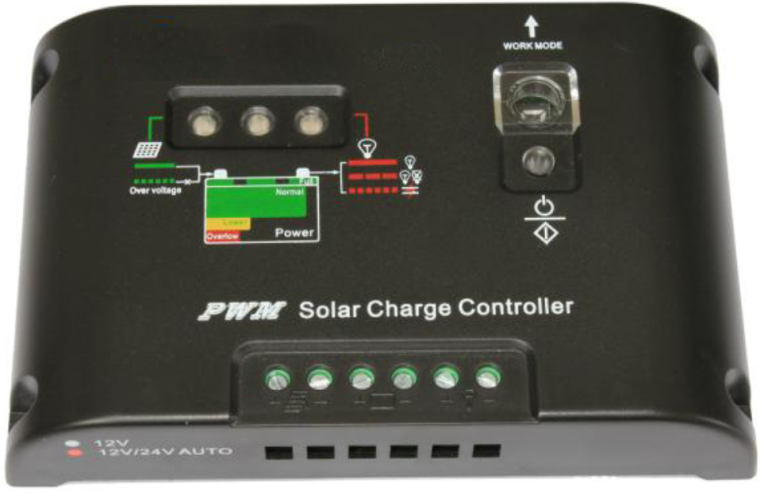

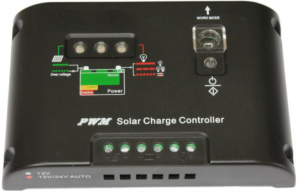

Technical Specifications Charge Regulator

VOLTa 12Va 24V
MAX INPUT CURRENT5/10A5/10A
LOAD CURRENT5/10A5/10A
LOAD DISCONNECT11,1V22,2V
RICONNECTION LOAD12,6V25,2V
TEMPERATURE-35° +55°-35° +55°
TERMINALS (without cable)6MMQ6 MMQ

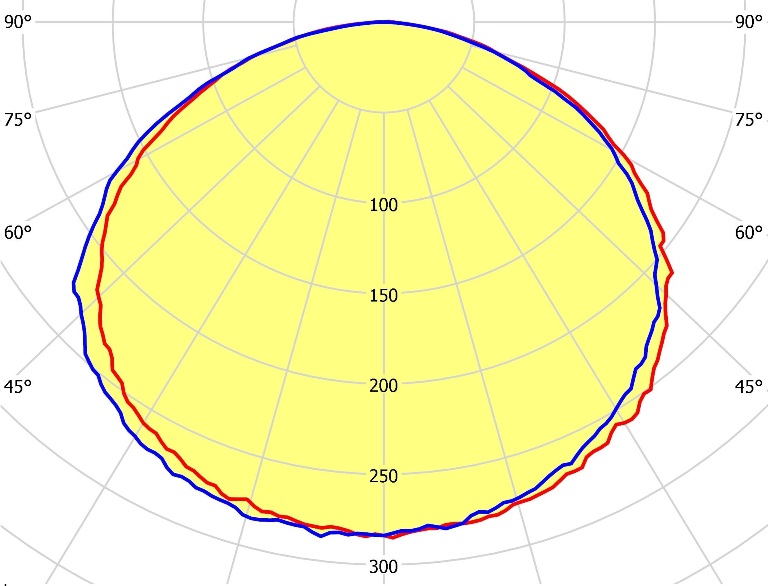

Photometrics available



Templates

AXEL_ECO 15

Absorbed Power15W
Light intensity 2280 lm
Number of LED12
Weight18 Kg
Battery*AGM 12V-22AH
Photovoltaic panel**50W at 12V module

AXEL 20

Absorbed Power20W
Light intensity 3954 lm
Number of LED12
Weight39 Kg
Battery*GEL 12V-50Ah
Photovoltaic panel**100W at 12V module

AXEL 40

Absorbed Power40W
Light intensity 7970 lm
Number of LED24
Weight68 Kg
Battery*2 GEL batteries 12V-50Ah
Photovoltaic panel**300W at 24V module

AXEL 55

Absorbed Power55W
Light intensity 10359 lm
Number of LED24
Weight68 Kg
Battery*2 GEL batteries 12V-50Ah
Photovoltaic panel**300W at 24V module

* AHs may vary by a few units. Please check when ordering.
** Panel model may be varied without notice depending on market availability.
