Aura
Auras are armatures with an elegant and prestigious design for outstanding street furniture. With innovative and harmonious forms, they fit elegantly into urban settings, historic centers and/or pedestrian areas. Available in different configurations to meet all possible customer needs.
Technical Specifications
| Body: Made of die-cast aluminum with low copper content. |
| Painting: In epoxy powered resistant to UV rays and weathering. |
| Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, class I or II +T. |
| Color temperature: 5000K (choice: 3000K, 4000K). |
| LED efficiency: 166lm/W. |

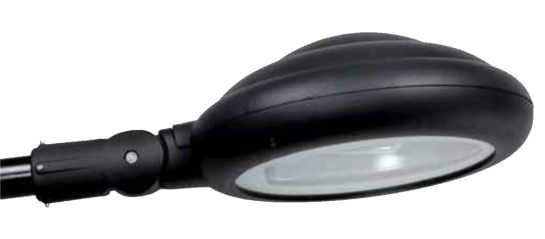

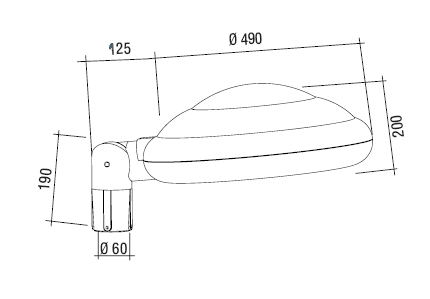

| Mounting AURA-Line: bracket or pole-top with adjustable arm in all directions, for poles or arms of 60mm. |

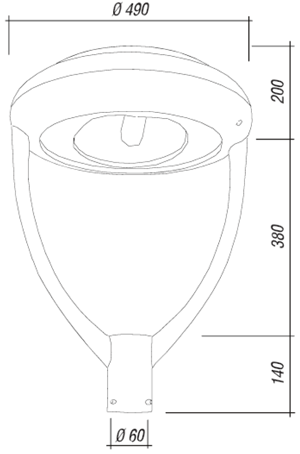

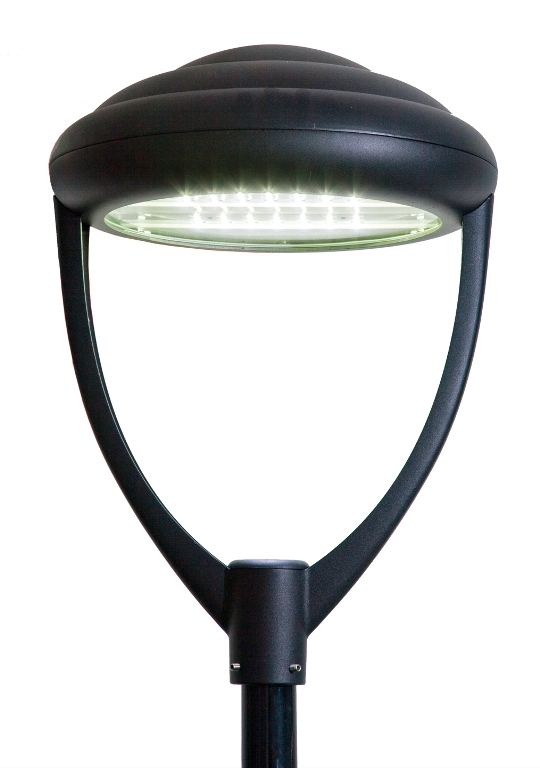

| Mounting AURA-Tes: bracket or pole-top with aluminium arms in furniture design, for poles with a diameter of 60mm. |
| Opening: from the bottom with stainless steel locking screw with anti-fall system. |
| Maintenance: maintenance operations in total operator safety due to the automatic line disconnect switch when the unit is opened. |
| Galss: Transparent tempered top 5 mm thick, resistant to impact and thermal shock. |
| Optics: Four models available and complies with current light pollution regulations and laws. |
| Silicone: silicone, perimeter to the optical compartment to ensure the excellent watertightness. |
| Screws and small parts: Stainless steel exterior, galvanized iron interior. |
| Reference standards: EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201. |
| Guidelines: 2011/65/CE, 2006/95/CE, 2004/108/CE. |
Photometrics available
The "AURA" LED urban light is available in the following models:
| AURA-Line | AURA-Tes |
 |  |
 |  |
| It uses the highest-performance LEDs on the market (the 30Watt version replaces SAP 100Watt) and is among the products to have the highest height-to-pole intedistance ratio. | Pole-head urban light with aluminum arms for 60mm diameter poles. |
PROPOSED POWERS
AURA 20
| Absorbed Power | 20W |
| Replace | SAP70, JM70 and MBF80 |
| Light intensity | 4112lm |
| Number of LED* | 12 |
| Weight** | 8,30 Kg |
AURA 30
| Absorbed Power | 30W |
| Replace | SAP100,JM100 and MBF125 |
| Light intensity | 5832lm |
| Number of LED* | 12 |
| Weight** | 8,30 kg |
AURA 40
| Absorbed Power | 40W |
| Replace | JM150 and MBF250 |
| Light intensity | 8224lm |
| Number of LED* | 24 |
| Weight** | 9,20 Kg |
AURA 60
| Absorbed Power | 60W |
| Replace | SAP150 and JM250 |
| Light intensity | 11664lm |
| Number of LED* | 24 |
| Weight** | 9,30 Kg |
AURA 90
| Absorbed Power | 75W |
| Replace | SAP250 and JM400 |
| Light intensity | 14910lm |
| Number of LED* | 36 |
| Weight** | 9,30 Kg |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%.
