Draco_Evo
Draco_Evo are the latest generation of LED floodlights from EuLux. With the Draco_Evo, EuLux has put a combined effort on both mechanics and electronics in order to have the highest performance with the least impact to the wind (an important detail on towers or in sports complexes).
In particular, with Draco_Evo, traditional headlights can be replaced with the same surface area and brightness but with savings of about 78%.
Technical Specifications
Body: Made of die-cast aluminum with low copper content.
Power supply: 110-270Vac, efficiency 94%, PFC>0,95, IP65 CLASS I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K or 6000K);
LED efficiency: 185lm/W minimum guaranteed at 85°;
Structure color: light gray;
Reference standards
|
| |

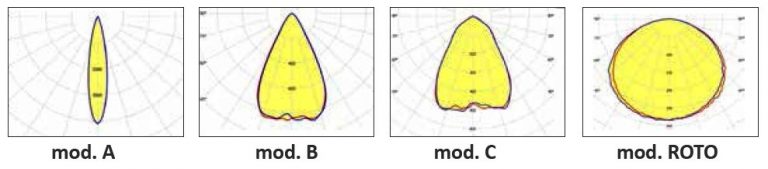

Photometrics available

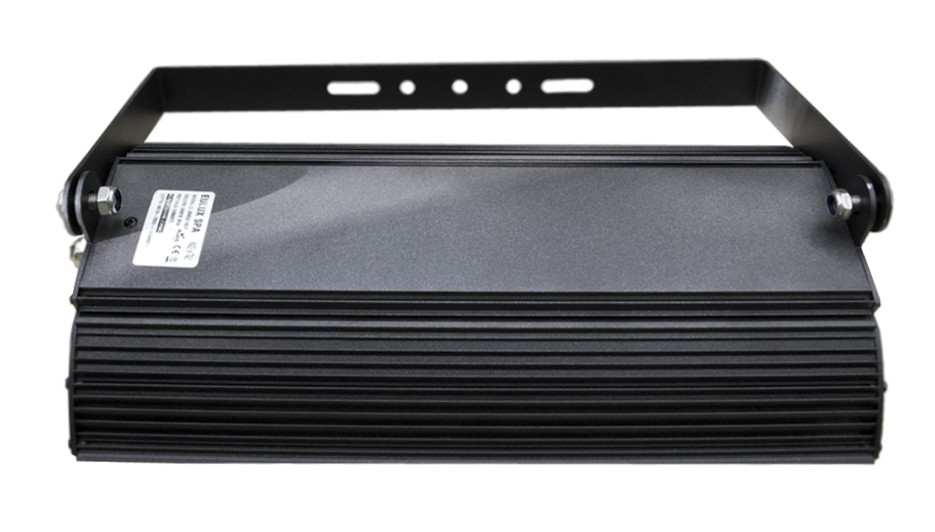

360° swivel bracket
Draco_EVO 30
| Absorbed Power | 30W |  |
| Replace | SAP 70 and JM70 | |
| Light intensity | 5806lm | |
| Number of LED* | 12 | |
| Weight** | 1,60 kg | |

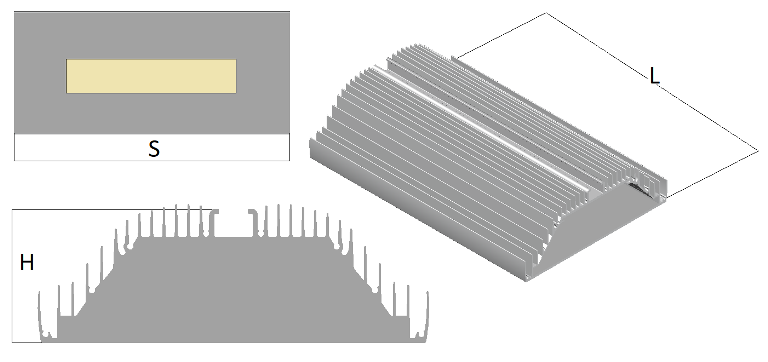

| Dimensions (mm) | S=130; L=195; H=67; |
Draco_EVO 60
| Absorbed Power | 60W | |
| Replace | SAP150 and JM250 | |
| Light intensity | 11664lm | |
| Number of LED* | 24 | |
| Weight** | 1,90 kg | |
| Dimensions (mm) | S=200; L=195; H=67; |
Draco_EVO 90
| Absorbed Power | 90W | |
| Replace | SAP250 | |
| Light intensity | 17496lm | |
| Number of LED* | 36 | |
| Weight** | 2,50 kg | |
| Dimensions (mm) | S=300; L=195; H=67; |
Draco_EVO 120
| Absorbed Power | 120W | |
| Replace | JM400 | |
| Light intensity | 23328lm | |
| Number of LED* | 48 | |
| Weight** | 3,50 kg | |
| Dimensions (mm) | S=450; L=195; H=67; |
Draco_EVO 180
| Absorbed Power | 180W | |
| Replace | JM600 | |
| Light intensity | 33300lm | |
| Number of LED* | 72 | |
| Weight** | 6 kg | |
| Dimensions (mm) | S=300; L=390; H=67; |
Draco_EVO 240
| Absorbed Power | 240W | |
| Replace | ——- | |
| Light intensity | 46448lm | |
| Number of LED* | 96 | |
| Weight** | 8 kg | |
| Dimensions (mm) | S=450; L=390; H=67; |
Draco_EVO 300
| Absorbed Power | 300W | |
| Replace | SAP and JM1000 | |
| Light intensity | 55500lm | |
| Number of LED* | 120 | |
| Weight** | 9 kg | |
| Dimensions (mm) | S=500; L=390; H=67; |
Draco_EVO 360
| Absorbed Power | 360W | |
| Replace | —— | |
| Light intensity | 66600lm | |
| Number of LED* | 144 | |
| Weight** | 10,50 kg | |
| Dimensions (mm) | S=450; L=585; H=67; |
Draco_EVO 450
| Absorbed Power | 450W | |
| Replace | —— | |
| Light intensity | 83250lm | |
| Number of LED* | 180 | |
| Weight** | 12,50 kg | |
| Dimensions (mm) | S=500; L=585; H=67; |
Draco_EVO 600
| Absorbed Power | 600W | |
| Replace | JM1000 | |
| Light intensity | 111000lm | |
| Number of LED* | 216 | |
| Weight** | 18 kg | |
| Dimensions (mm) | S=600; L=585; H=67; |
Draco_EVO 900
| Absorbed Power | 820W | |
| Replace | JM2000 | |
| Light intensity | 151700lm | |
| Number of LED* | 288 | |
| Weight** | 31 kg | |
| Dimensions (mm) | S=800; L=780; H=67; |
Draco_EVO 1200
| Absorbed Power | 1200W | |
| Replace | —— | |
| Light intensity | 222000lm | |
| Number of LED* | 432 | |
| Weight** | 42 kg | |
| Dimensions (mm) | S=1200; L=585; H=67; |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
