Scudo
Scudo is a new armor for urban lighting with a sleek, modern design with a minimalist line that integrates into any type of context, from historic centers, to various urban areas. Scudo stands as an absolute excellence in both lighting performance and structural features. Available in two different configurations in shapes (Scudo_sos and Scudo_tes)
Technical Specifications
| Body: Made of die-cast aluminum with low copper content. |
| Painting: In epoxy powered resistant to UV rays and weathering. |
| Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, class I or II +T. |
| Color temperature: 5000K (choice: 3000K, 4000K). |
| LED efficiency: 166lm/W. |

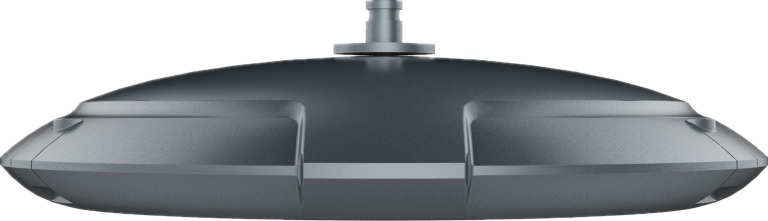

| Mounting SCUDO-SOS: suspended on ropes with a maximum diameter of 8 mm. |

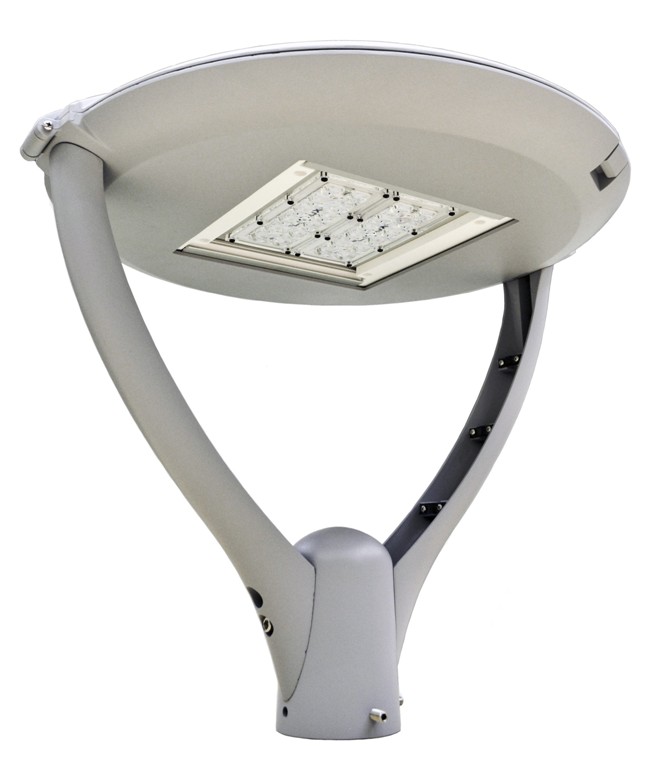

| Mounting SCUDO-TES: pole-head with aluminum arms in furniture design, for 60 mm diameter poles. |
| Opening: from above with fast closing with anti-fall system. |
| Maintenance: Maintenance operations in total operator safety due to the automatic line disconnect switch when the unit is opened. |
| Galss: Transparent tempered top 5 mm thick, resistant to impact and thermal shock. |
| Optics: Four models available and complies with current standards and laws regarding light pollution. |
| Silicone: silicone gasket, perimeter to the optical compartment to ensure the excellent watertightness. |
| Screws and small parts: stainless steel exterior, galvanized iron interior. |
| Reference standards: EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201. |
| Guidelines: 2011/65/CE, 2006/95/CE, 2004/108/CE. |

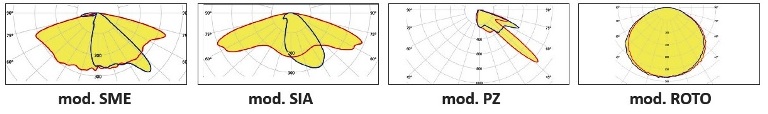

Photometrics available
The LED light "SCUDO" is available in the following models:
| SCUDO-SOS | SCUDO-TES |
 |  |
 |  |

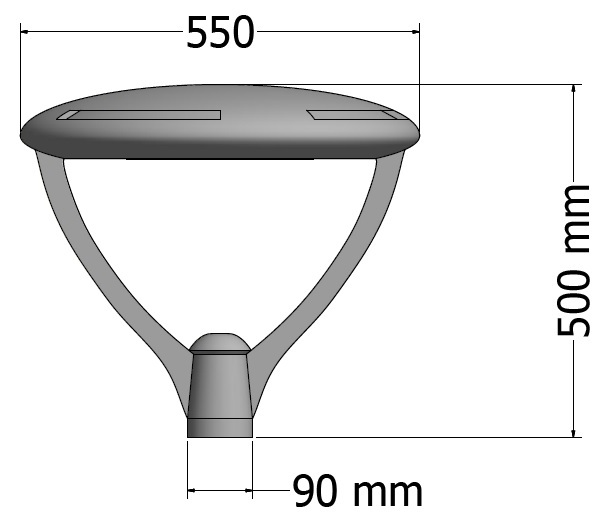

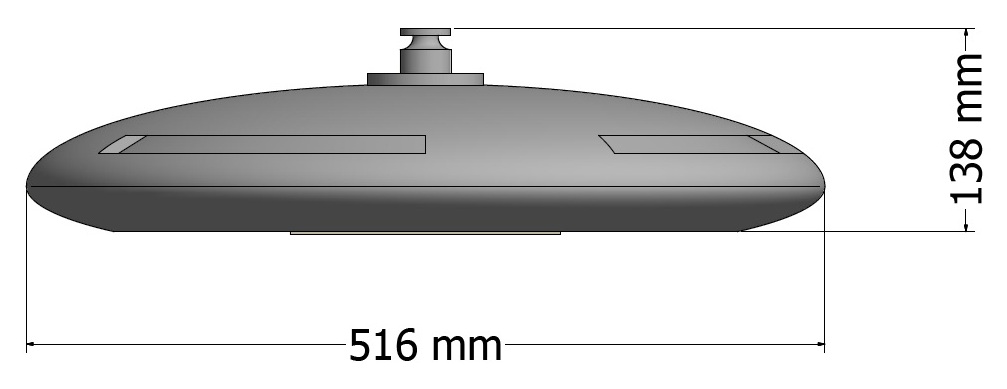

| Hanging on ropes max diameter 8mm. Rope attachment with streetlight rotation and tilt adjustment to optimize the light beam on the road axis. | Street light with mounting pole head with aluminium arms for poles diameter of 60mm. |
PROPOSED POWERS
SCUDO 20
| Absorbed Power | 20W |
| Replace | SAP70, JM70 and MBF80 |
| Light intensity | 4112lm |
| Number of LED* | 12 |
| Weight** | 6,00 Kg |
SCUDO 30
| Absorbed Power | 30W |
| Replace | SAP100,JM100 and MBF125 |
| Light intensity | 5832lm |
| Number of LED* | 12 |
| Weight** | 6,00 kg |
SCUDO 40
| Absorbed Power | 40W |
| Replace | JM150 and MBF250 |
| Light intensity | 8224lm |
| Number of LED* | 24 |
| Weight** | 6,00 Kg |
SCUDO 60
| Absorbed Power | 60W |
| Replace | SAP150 and JM250 |
| Light intensity | 11664lm |
| Number of LED* | 24 |
| Weight** | 6,30 Kg |
SCUDO 90
| Absorbed Power | 75W |
| Replace | SAP250 and JM400 |
| Light intensity | 14910lm |
| Number of LED* | 36 |
| Weight** | 8,50 Kg |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%.
