Led Pled Ran
Our research, through an innovative lighting concept, has developed the Pled Ran for the purpose of enhancing and improving living and working conditions in offices. Light merges with the space and describes its architecture, until it becomes a multidimensional luminous medium. This concept is based on the combination of indirect lighting in the atmosphere in which it is applied. The vision and perception of the product and light take on a semantic value of weaving the light space.
The Pled Ran is presented as a perfectly uniform light surface with low luminance and, at the same time, with a large luminous flux sufficient to provide adequate lighting for professional and/or home environments. The Pled Ran marks a paradigm shift in the use of office light fixtures.
Customers tend to use LED tubes and insert them into neon ceiling lights, replacing classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following links, this technique causes the ceiling light to lose its certification and CE mark:
LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)
http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html
Technical Specifications
Body: Made of aluminum with low copper content;
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, CLASS I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K);
Mounting: Recessed in 60x60cm square (or ceiling mounted with the use of OpSP);
Photobiological safety: Conforms to the exempt risk group RG0, IEC 62471 standard;
Galss: Polycarbonate screen guaranteed 10 years against yellowing, IK08;
LED efficiency: 166 lm/W minimum guaranteed at 85°;
Reference standards
Conforms to exempt risk group RG=0; IEC 62471 standard; |
| |

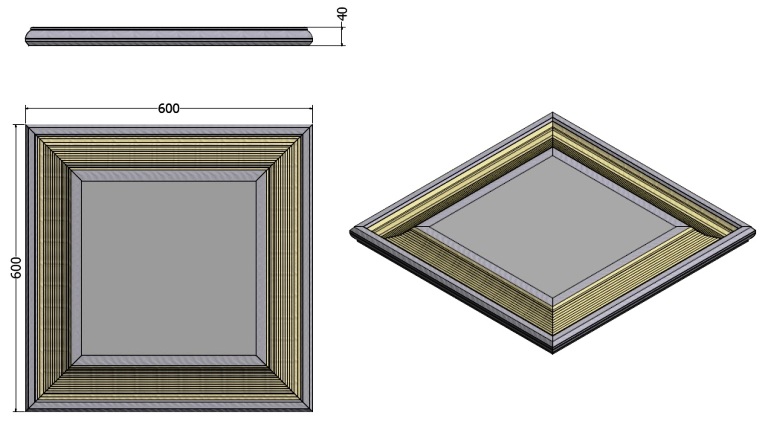

Dimensions
Available ceiling structure colors

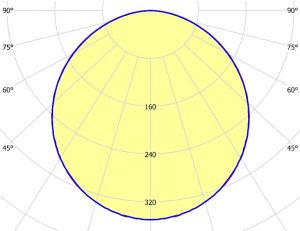

Available photometrics
PLED RAN4
| Power Absorbed | 45W |
| Number of Led* | 192 |
| Light Intensity | 7650 lm |
| Replace | 4×18 neon |
| Weight** | 2,6 Kg |
| Dimensions | 595x595x40mm |
PLED RAN6
| Power Absorbed | 60W |
| Number of Led* | 192 |
| Light Intensity | 10200 lm |
| Replace | N°2 4X18 neon |
| Weight** | 2,6 Kg |
| Dimensions | 595x595x40mm |
PLED RAN62
| Power Absorbed | 80W |
| Number of Led* | 288 |
| Light Intensity | 13600 lm |
| Replace | N°2 4X18 neon |
| Weight** | 4,0 Kg |
| Dimensions | 595x1190x40mm |
PLED RAN64
| Power Absorbed | 120W |
| Number of Led* | 384 |
| Light Intensity | 20400 lm |
| Replace | N°2 4X18 neon |
| Weight** | 5,5 Kg |
| Dimensions | 1190x1190x40mm |
PLED RAN68
| Power Absorbed | 180W |
| Number of Led* | 576 |
| Light Intensity | 30600 lm |
| Replace | N°2 4X18 neon |
| Weight** | 5,5 Kg |
| Dimensions | 1190x1190x40mm |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
