Led Pledisat

The Pledisat is the new Pledout with perfectly satin-finished and uniform luminous surface glass.

It’s particularly suitable for environments where strong illuminance is needed but without glare (UGR<19). Available in two(2) models featuring a perfect balance between size and luminous flux for a diffused light effect unmatched in the market.

  • Tipology

    Led Ceiling Lights

  • Category

    Commercial and tertiary, Industrial, Led ceiling lights

Open Project
Technical features

Pledisat LED ceiling light.


Customers tend to use LED tubes and insert them into neon ceiling lights, replacing the classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following links, this technique causes the ceiling light to lose its certification and CE mark:

LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)



Technical Specifications

Body: Made of die-cast aluminum with low copper content.

Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP54 Class I and II+T;

Color temperature: 5000K (choice: 3000K, 4000K);

Mounting: hanging or wall mounting;

Photobiological security: Conforms to the exempt risk group RG0, IEC 62471 standard;

LED efficiency: 166 lm/W;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE

Conforms to the exempt risk group RG=0; norm IEC 62471;

  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

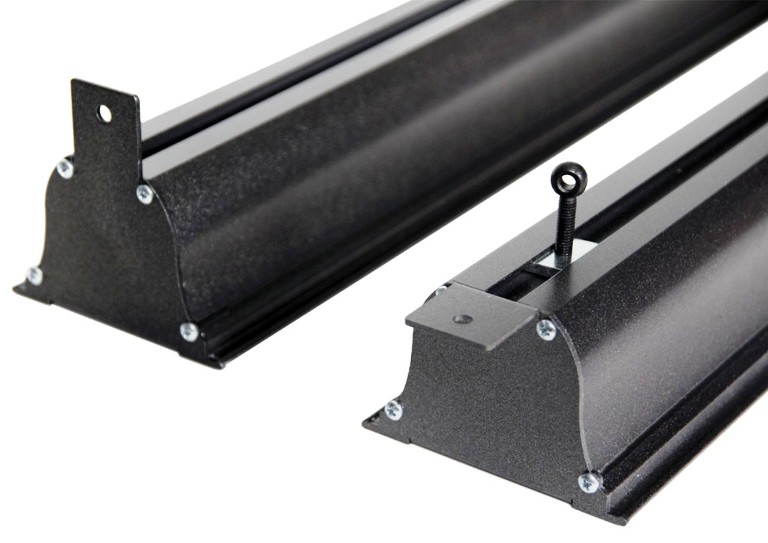

Type of attacks

Available structure colors

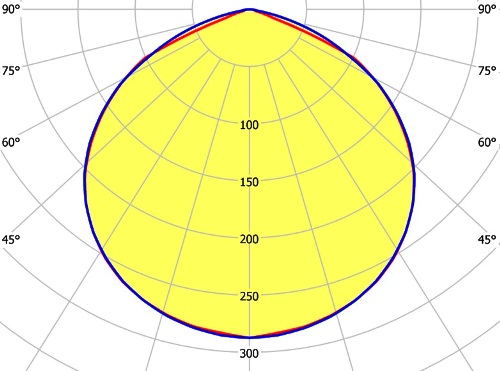

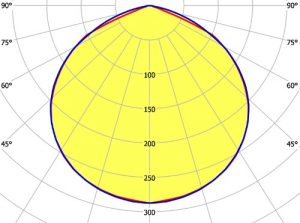

Available photometrics



Absorbed Power20W
Number of LED*48
Light intensity 3500 lm
Replace2×18 neon

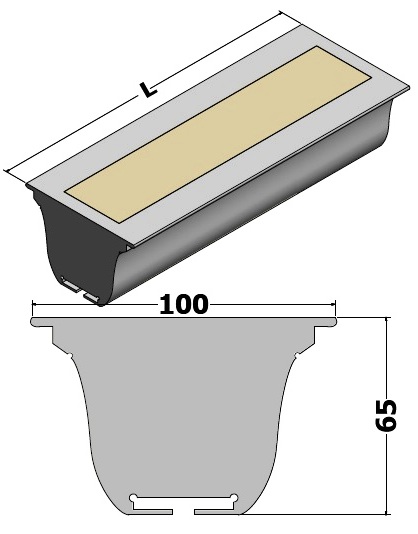

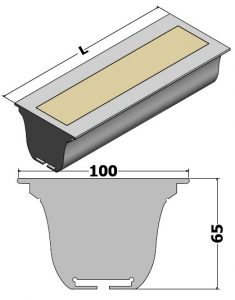

Dimensions600x100x64 mm
Weight**1,9 Kg


Absorbed Power35W
Number of LED*96
Light intensity 6125 lm
Replace2×36 neon
Dimensions1200x100x64 mm
Weight**3,2 Kg


Absorbed Power50W
Number of LED*144
Light intensity 9100 lm
Replace2×58 neon
Dimensions1500x100x64 mm
Weight**4 Kg

* This value is subject to change without notice, so please ask for confirmation when ordering

**+/- 5%



OpDARF1: Self dimming without the possibility of setting;
OpDAR2: Self dimming with time setting for activation time;
OpINLUX: Predisposition for remote light control PITECO;
OpRAYBOX: Surge protection 20KA mounted into the street light;
