Led Pled Glim
Glim are 60x60cm ceiling lights designed to provide full freedom of light management and customization in the space.
The whole range of Glim allows the choice of shapes in a simple, functional, but also magical and poetic way. By exaggerating the connective elements of the design, the light modules become modular building blocks in the space to create their own light base. Only with the Glims can you customize the lighting aesthetics of your environment (in addition to the basic range we can also produce elements according to the customer’s design and specification).
Customers tend to use LED tubes and insert them into neon ceiling lights, replacing the classic neon, with adaptive wiring harnesses. As you can read from the PDF and the following links, this technique causes the ceiling light to lose its certification and CE mark:
LED lamps with G5 and G13 socket: risks and responsibilities (ASSIL - TECHNICAL STATEMENT)
http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html
Technical Specifications
Body: Made of aluminum and polycarbonate;
Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, CLASS I and II+T;
Color temperature: 5000K (choice: 3000K, 4000K);
Mounting: Recessed in 60x60cm square (or ceiling mounted with the use of OpSP);
Photobiological safety: Conforms to the exempt risk group RG0, IEC 62471 standard;
Galss: Polycarbonate screen guaranteed 10 years against yellowing, IK08;
LED efficiency: 166 lm/W minimum guaranteed at 85°;
Reference standards
Conforms to exempt risk group RG=0; IEC 62471 standard; |
| |

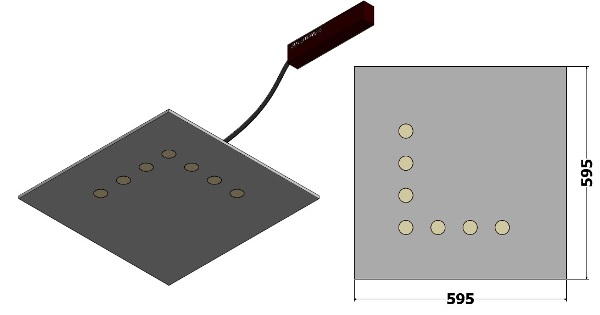

Dimensions
Available ceiling structure colors

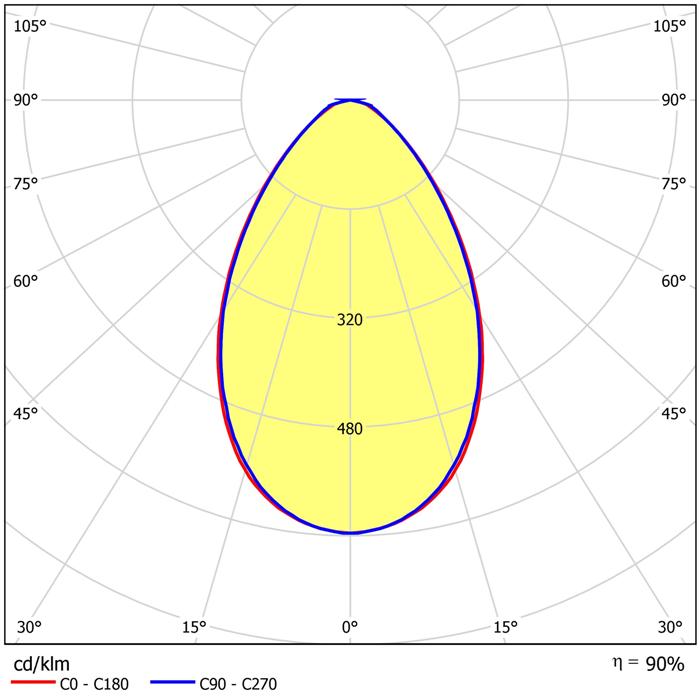

Available photometrics
GLIM20
| Power Absorbed | 20W |
| Number of Led* | 8 |
| Light Intensity | 3320 lm |
| Weight** | 2,4 Kg |
*This value is subject to change without notice, so please ask for confirmation when ordering
**+/- 5%
Options
OpLUCO: Electronic control system for self-regulation of LED lighting;
OpCE1: Emergency kit for LED lamps;
OpSP: structure for mast mounting;
OpDALI: Electronic control system for LEd lighting with standard DALI protocol;
OpINLUX: Arrangement for PITECO flow controller and/or remote control;
