“SCUDO” Urban Street Lighting LED

“SCUDO” Urban Street Lighting LED

The SCUDO is a new armor for street furniture with an elegant yet modern design, the minimalist design that integrates in any type of environment, historic centers, the various urban areas.

The SHIELD stands as an absolute excellence in urban design for both lighting performance and for its structural characteristics.
Available in two different configurations in the forms (SCUDO _SOS and SCUDO_TES).

Technical specifications

Structure: Die-cast aluminum structure with low copper content.
Painting: Epoxy poweder finish resistant to UV rays et atmospheric agents.
Power: 110-270 Vac, efficiency 94%, PFC>0,95, IP66 (also with voltage 12-24Vdc).
Color Temp: 5000°K (choice of:  3000°, 4000°K).
Efficiency LEDs: 166lm/watt.
Mounting SCUDO-Sos: Hanging on ropes of maximum diameter of 8mm.

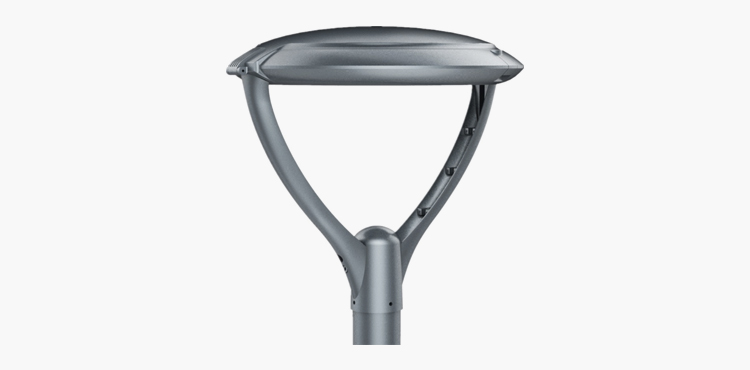

Mounting SCUDO-Tes: A pole-top with aluminum arms in furniture design, for poles with a diameter of 60mm.
Opening: From the top with quick closure with fall arrest system.
Maintenance: Maintenance operations in operator safety thanks to automatic disconnection of the opening line of the device.
Glass: Trasparent tempered glass thickness 5mm. Resistant to impact and thermal shock.
Optics: Four models aviable, adpted for street use.
Gasket: Silicone around the optical to ensure the optimal watertight.
Screws and small parts: Stainless steel external, internal galvanized iron.
Reference standards: EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201.
Directives: 2011/65/CE, 2006/95/CE, 2004/108/CE.

Colors structure



Photometric now available

The Urban Street Lighting “Scudo” is available in the following models:

SCUDO-Sos SCUDO-Tes

A suspended on wire ropes 8mm diameter max. Attack wire rope with adjustable rotation and inclination of armor to optimize the beam axis road. Street furniture with mounting pole head with aluminum arms for poles diameters of 60mm.

PROPOSED POWERS

SCUDO 20

Power consumption 20 Watt
Replaces SAP70, JM70 and MBF80
Luminous flux on the LED 3320 lm
Number of LEDs** 12
Weight** 6 Kg

SCUDO 30

Power consumption 30 Watt
Replaces SAP100, JM100 and MBF125
Luminous flux on the LED 4980 lm
Number of LEDs** 12
Weight** 6,00 kg

SCUDO 40

Power consumption 40 Watt
Replaces JM150 and MBF250
Luminous flux on the LED 6640 lm
Number of LEDs** 12
Weight** 6,00 Kg

SCUDO 60

Power consumption 60 Watt
Replaces SAP150 and JM250
Luminous flux on the LED 9960 lm
Number of LEDs* 24
Weight** 6,3 Kg

SCUDO 90

Power consumption 90 Watt
Replaces SAP250 e JM400
Luminous flux on the LED 14940 lm
Number of LEDs* 24
Weight** 8,50 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

Opzioni

OpDARF1: Dimmering autonomo senza possibilità di settaggio;

OpDAR2: Dimmering autonomo con impostazione dell’ora di attivazione;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;

OpRAYBOX: Scaricatore di sovratensione 20KA montato nell’armatura;
