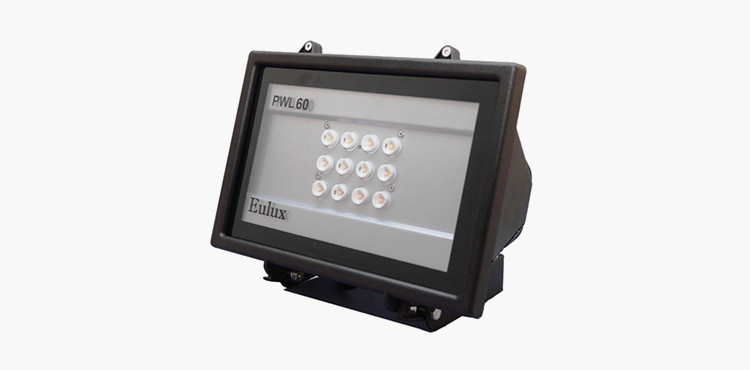

“PWL” LED outdoor wall floodlights

“PWL” LED outdoor wall floodlights

The PWL is an economic line of LED lights for outdoor characterized by modern technology combined with a classic aesthetic. The PWL have been designed to offer lighting solutions for medium and low power.

The outstanding performance of this projector in terms of energy saving and light efficiency are accompanied by a long life of 50,000 hours, materials with IP65 protection for outdoor installations.

Technical Specifications

BODY: In aluminum with low copper content;

POWER SOURCE: 110-270 Vac, efficiency 94%, PFC>0,95, Class I e II + T;;

COLOR TEMPERATURE: 5000°K (choice: 3000° K, 4000°K);

PAINTING: epoxy powder resistant to UV and atmospheric agents;

OPTICS: Optics 60°, 96° or 120°;

GLASS: Display Polycarbonate 10-year warranty against yellowing, IK08;

EFFICIENCY LED: 160 lm/watt guaranteed minimum at 85°;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3

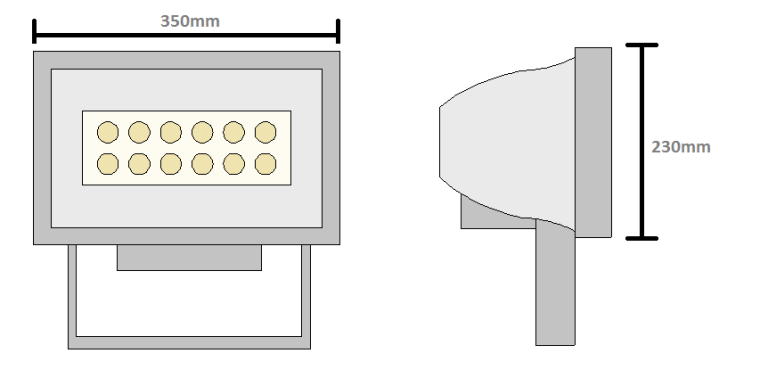

Dimensions

Photometric available

Body colours available

8PWL 030

Power absorbed LED 30Watt
Number of LED* 12
Can replace Halogen 300W
Luminous flux on the LED 4800 lm
Weight** 4,5 Kg

PWL 060

Power absorbed LED 60Watt
Number of LED* 24
Can replace Halogen 500W
Luminous flux on the LED 9600 lm
Weight** 5,0 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

Options

OpLUCO: Electronic control system for self-regulation of LED lighting;

OpCE1: Emergency Kit for LED lamps;

OpINLUX: Predisposition for remote light control PITECO;

OpRAYBOX: Surge protection 20KA mounted into the street light;
