“Oxana” LED Plate for Lanterns

“Oxana” LED Plate for Lanterns

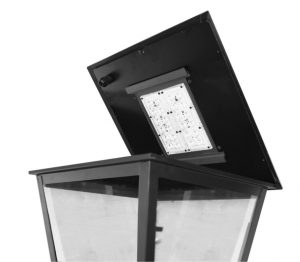

With the “Oxana” lantern plates you have all the benefits of LED without altering the harmony of the old town.

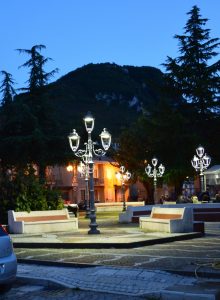

The historic centers of many municipalities are lit up with the urban furniture of particular prestige. The adjustment of these light fixtures to the new regulatory framework and technological culture, which is completely changed compared to what have been installed, require the custom-designed products. Technological breakthroughs have led to a continuous progress especially in the lighting industry and legislation are increasingly oriented to environmental protection to fight light pollution and all forms of waste. The Oxana are perfectly suited to urban existing enhance it, updating and improving the aesthetics and performance in a cost-effective framework.

The OXANA not dazzle and have a heat light 3000K which gives a pleasant visual perception.

Design, quality, elegance and attention to detail, these are the typical values of Made in Italy and the way in which we design and manufacture our products. Our articles are the full expression of our beliefs and way of thinking about our work, not as a simple assembly line, but as the packaging of small works of art. With all the benefits of LED Oxana not altering the harmony of the historic center.

CAUTION: BEFORE INSTALLATION, MAKE SURE THAT YOU ARE SUITABLE IN THE AREA WHERE THE OXANA IS INSERTED.

Technical Specifications

Body: Aluminum sheet, painted with epoxy specifications;

Power supply: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, class I e II +T.

Color Temperature: 3000°K (choice:  4000°, 5000°K).

Efficiency LED: 166lm/watt.

Connections: card connector – power supply pond.

Reference standards: EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201.

Guidelines: 2011/65/CE, 2006/95/CE, 2004/108/CE.

Dimensions

S*= 340mm; L*=340mm; H=50mm;

*customizable dimensions.

Color available

Photometric now available

Fotometriche Ligra

Oxana 20

Power consumption 20 Watt
Replaces SAP70, JM70 and MBF80
Luminous flux on the LED 3320 lm
Number of LEDs* 12
Weight** 2,9 Kg

Oxana 30

Power consumption 30 Watt
Replaces SAP100, JM100 and MBF125
Luminous flux on the LED 4980 lm
Number of LEDs* 12
Weight** 3,3 Kg

Oxana 40

Power consumption 40 Watt
Replaces SAP150 and MBF250
Luminous flux on the LED 6640 lm
Number of LEDs* 12
Weight** 3,3 Kg

Oxana 60

Power consumption 60 Watt
Replaces SAP150 and JM250
Luminous flux on the LED 9960 lm
Number of LEDs* 24
Weight** 4,7 Kg

Oxana 90

Power consumption 90 Watt
Replaces SAP250 y JM400
Luminous flux on the LED 14940 lm
Number of LEDs* 36
Weight** 4,7 Kg

Oxana 120

Power consumption 120 Watt
Replaces SAP400
Luminous flux on the LED 19920 lm
Number of LEDs* 36
Weight** 4,9 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.
** +/- 5%.

Opzioni

OpDARF1: Dimmering autonomo senza possibilità di settaggio;

OpDAR2: Dimmering autonomo con impostazione dell’ora di attivazione;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;

OpRAYBOX: Scaricatore di sovratensione 20KA montato nell’armatura;
