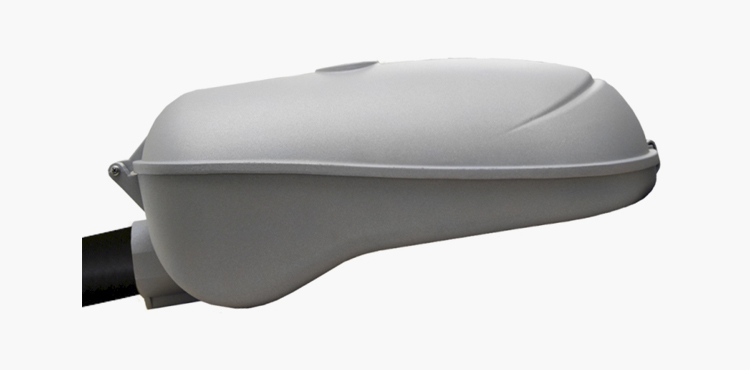

The NYX are led street lighting with traditional design but with excellent lighting performance.

Using LEDs to 160lm/w allows for energy savings of over 80% compared to traditional lamp.

The NYX are particularly suitable for various applications; from public spaces to commercial areas and / or residential ensuring quality lighting for better visual perception.



Some installations made

  • Full replacement of public lighting of the City of Ripabottoni (CB)
  • Full replacement of public lighting of the City of Montesarchio (Bn)
  • Full replacement of public lighting of the City of San Martino Valle Caudina (AV)
  • Full replacement of public lighting of the City of Campoli Monte Taburno (BN)
  • Partial replacement of public lighting of the City of Casalincontrada (CH)
  • Partial replacement of public lighting of the City of Muro Lucano (PZ)
  • Full replacement of public lighting of  the “Brigata Sassari” barracks
  • Full replacement of public lighting of  the”Aeronautica Militare Licola” barracks
  • Full replacement of public lighting of  the”Aeronautica Militare Frosinone” barracks

Technical Specifications

Structure: Made of die-cast aluminum with low copper content;

Alimentation: 110-270 Vac (even with voltages 12-24 Vdc, efficiency 94%, PFC>0,95, IP65;

Color Temperature: 5000° K (choice of 300° K, 4000° K);

Class: II + T or Class I;

Coating: with epoxy powders resistant to UV and atmospheric agents;

Mounting: Side and top pole with the possibility to adjust the tilt from -+/- 15°, +/- 10° and +/-5%. For poles of max. 62 mm diameter;

Optical unit: Large choice. Complies with all laws and regulations existing in the field of light pollution;

LED efficiency: 160 lm/watts

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 204/108/CE
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 10819
  • UNI 11248
  • EN 13201

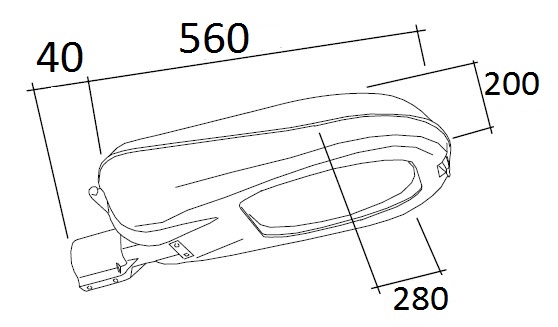

Dimensions

Photometric available

Nyx 20

Power consumption 20 Watt
Replaces MBF80
Luminous intensity on LED 3000 lm
Number of LEDs* 12
Weight** 6,00 Kg

Nyx 30

Power consumption 30 Watt
Replaces SAP70 and MBF125
Luminous intensity on LED 4500 lm
Number of LEDs* 12
Weight** 6,50 Kg

Nyx 40

Power consumption 40 Watt
Replaces SAP100 and JM150
Luminous intensity on LED 6000 lm
Number of LEDs* 12
Weight** 6,50 Kg

Nyx 60

Power consumption 60 Watt
Replaces SAP150 and MBF250
Luminous intensity on LED 9000 lm
Number of LEDs* 16
Weight** 7,00 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

Options

OpDARF1: Self dimmering without the possibility of seting;

OpDAR2: Self Dimmering with the setting of the activation time;

OpINLUX: Predisposition for remote light control PITECO;

OpRAYBOX: Surge protection 20KA mounted into the street light;
