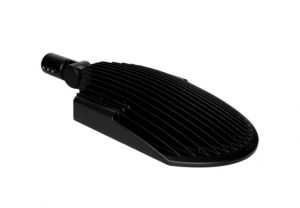

The LED street lighting of the Gladio series are the newest solution for street lighting. It take advantage of the very high light efficiency of the CREE LED or NICHIA to generate a consistent light on the roadway.
Its structure has been designed to highlight the peculiar characteristics of the leds to obtain performance and more efficient designed to be a true visual feature an innovative design with the best performance on the market.
Special versions
In addition to the basic version of the GLADIO, EuLux proposes two more special versions:
GLADIO_PLUS and GLADIO_ECO.
These solutions are tailored to specific customer needs.
The GLADIO_PLUS with the same output brightness allow a big energy saving rispect to the basic GLADIO, This makes GLADIO particularly suitable for those who must return the investment cost on the basis of future energy savings.
While the GLADIO_ECO is the economical version of GLADIO with the same consumption.
Technical specifications
| Structure | Die-cast aluminum structure with low copper content |
| Power | 110-270 Vac, efficiency 94%, PFC>0,95, IP66 (also with voltage 12-24Vdc) |
| Color temp. | 5000°K (choice of: 3000°, 4000°K) |
| Class | II + T or class I |
| Painting | Epoxy poweder finish resistant to UV rays et atmospheric agents. |

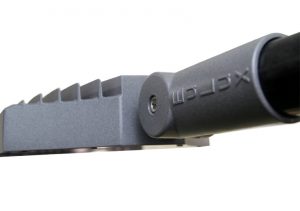

| Assembly | Side and top pole mounting with adjustable tilt of + /- 15°, + /- 10° and + /- 5°. For poles of max. 62 mm diameter. |
| Optical Group | Wide choice. Complies with all laws and regulations existing in the field of light pollution. |
| Efficiency LEDs | 166lm/watt |
| Reference standards | EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201 |
| Directives | 2011/65/CE, 2006/95/CE, 204/108/CE |
Dimensions
Colors structure
BLACK GRAY ANTHRACITE
Photometric now available
Gladio 20
| Power consumption | 20 Watt |
| Replaces | MBF80 |
| Luminous flux on the LED | 3320 lm |
| Number of LEDs* | 12 |
| Weight** | 7,4 Kg |
Gladio 20PLUS
| Power consumption | 16 Watt |
| Replaces | MBF80 |
| Luminous flux on the LED | 3320 lm |
| Number of LEDs* | 12 |
| Weight** | 7,4 Kg |
Gladio 20ECO
| Power consumption | 20 Watt |
| Replaces | MBF80 |
| Luminous flux on the LED | 2900 lm |
| Number of LEDs* | 12 |
| Weight** | 7,4 Kg |
Gladio 30
| Power consumption | 30 Watt |
| Replaces | SAP70 e MBF125 |
| Luminous flux on the LED | 4980 lm |
| Number of LEDs* | 12 |
| Weight** | 7,5 Kg |
Gladio 30PLUS
| Power consumption | 24 Watt |
| Replaces | SAP70 e MBF125 |
| Luminous flux on the LED | 4980 lm |
| Number of LEDs* | 12 |
| Weight** | 7,5 Kg |
Gladio 30ECO
| Power consumption | 30 Watt |
| Replaces | SAP70 e MBF125 |
| Luminous flux on the LED | 4300 lm |
| Number of LEDs* | 12 |
| Weight** | 7,5 Kg |
Gladio 40
| Power consumption | 40 Watt |
| Replaces | SAP100 and JM150 |
| Luminous flux on the LED | 6640 lm |
| Number of LEDs* | 12 |
| Weight** | 7,5 Kg |
Gladio 40PLUS
| Power consumption | 31 Watt |
| Replaces | SAP100 and JM150 |
| Luminous flux on the LED | 6640 lm |
| Number of LEDs* | 12 |
| Weight** | 7,5 Kg |
Gladio 40ECO
| Power consumption | 40 Watt |
| Replaces | SAP100 and JM150 |
| Luminous flux on the LED | 5800 lm |
| Number of LEDs* | 12 |
| Weight** | 7,5 Kg |
Gladio 60
| Power consumption | 60 Watt |
| Replaces | SAP150 and MBF250 |
| Luminous flux on the LED | 9960 lm |
| Number of LEDs* | 24 |
| Weight** | 7,6 Kg |
Gladio 60PLUS
| Power consumption | 48 Watt |
| Replaces | SAP150 and MBF250 |
| Luminous flux on the LED | 9960 lm |
| Number of LEDs* | 24 |
| Weight** | 7,6 Kg |
Gladio 60ECO
| Power consumption | 60 Watt |
| Replaces | SAP150 and MBF250 |
| Luminous flux on the LED | 8600 lm |
| Number of LEDs* | 24 |
| Weight** | 7,6 Kg |
Gladio 90
| Power consumption | 90 Watt |
| Replaces | SAP250 |
| Luminous flux on the LED | 14940 lm |
| Number of LEDs* | 36 |
| Weight** | 7,6 Kg |
Gladio 90PLUS
| Power consumption | 77 Watt |
| Replaces | SAP250 |
| Luminous flux on the LED | 14940 lm |
| Number of LEDs* | 36 |
| Weight** | 7,6 Kg |
Gladio 90ECO
| Power consumption | 90 Watt |
| Replaces | SAP250 |
| Luminous flux on the LED | 12800 lm |
| Number of LEDs* | 24 |
| Weight** | 7,6 Kg |
Gladio 120
| Power consumption | 120 Watt |
| Replaces | SAP400 |
| Luminous flux on the LED | 19920 lm |
| Number of LEDs* | 36 |
| Weight** | 8 Kg |
Gladio 120PLUS
| Power consumption | 100 Watt |
| Replaces | SAP400 |
| Luminous flux on the LED | 19920 lm |
| Number of LEDs* | 36 |
| Weight** | 8 Kg |
Gladio 120ECO
| Power consumption | 120 Watt |
| Replaces | SAP400 |
| Luminous flux on the LED | 16900 lm |
| Number of LEDs* | 36 |
| Weight** | 8 Kg |
Gladio 150
| Power consumption | 150 Watt |
| Replaces | JM600 |
| Luminous flux on the LED | 24900 lm |
| Number of LEDs* | 36 |
| Weight** | 8 Kg |
Gladio 150PLUS
| Power consumption | 125 Watt |
| Replaces | JM600 |
| Luminous flux on the LED | 24900 lm |
| Number of LEDs* | 36 |
| Weight** | 8 Kg |
* This value may be subject to change without notice, so please ask for confirmation when ordering.
** +/- 5%.
