LED spotlights “RAVE”

LED spotlights “RAVE”

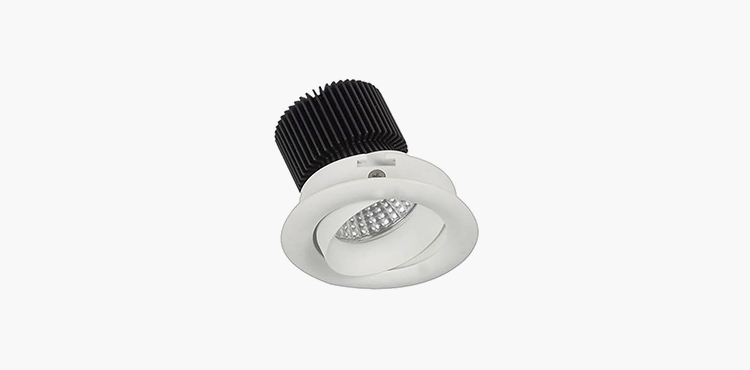

The RAVE is the first spotlight that offers EuLux with COB LED technology.

Powerful and elegant, with its cutting edge design and modern blends with the architecture and generate sophisticated lighting that can be used in many environments like homes, clubs, bars, etc…

It is available in three models for different needs.

Technical specifications

Body: Die-cast aluminum structure with low copper content;

Power: 220 Vac, Class I and II, IP45;

Color Temperature: Warm White 3000°K,  Cold White (5000°);

Dimmering: Upon request predisposition for dimming analog / digital;

Beam adjustment: Adjustable light beam;

Ceiling thickness: 1 to 25mm;

LED efficiency: 166 lm/watt;

Reference standards

[symbols ids=”2011/65/CE, 2006/95/CE, 2004/108/CE”]
Conforms to the group of risk-free RG=0; IEC 62471;
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

RAVE09

Photometric Dimensions

9 Watt,1 COB, 1100Lm (eq. Halogen 60 Watt), Beam angle 45°, Hole size 75mm

RAVE20

Photometric Dimensions

20 Watt,1 COB, 2300Lm (eq. Halogen 200 Watt), Beam angle 45°, Hole size 110mm

RAVE25

Photometric Dimensions

25 Watt,1 COB, 2800Lm (eq. Halogen 200 Watt), Beam angle 45°, Hole size 125mm
