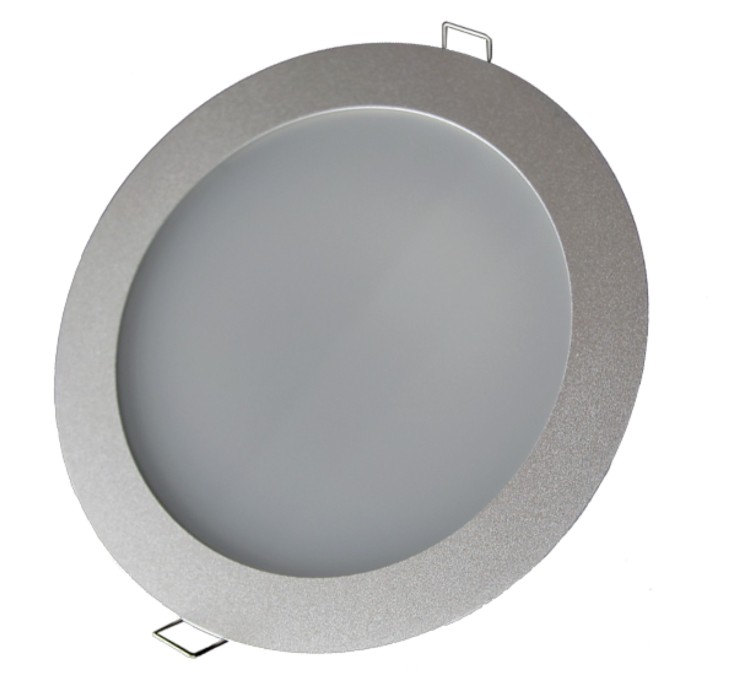

LED recessed spotlights ORION

LED recessed spotlights ORION

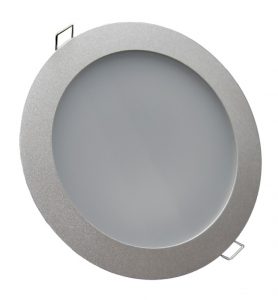

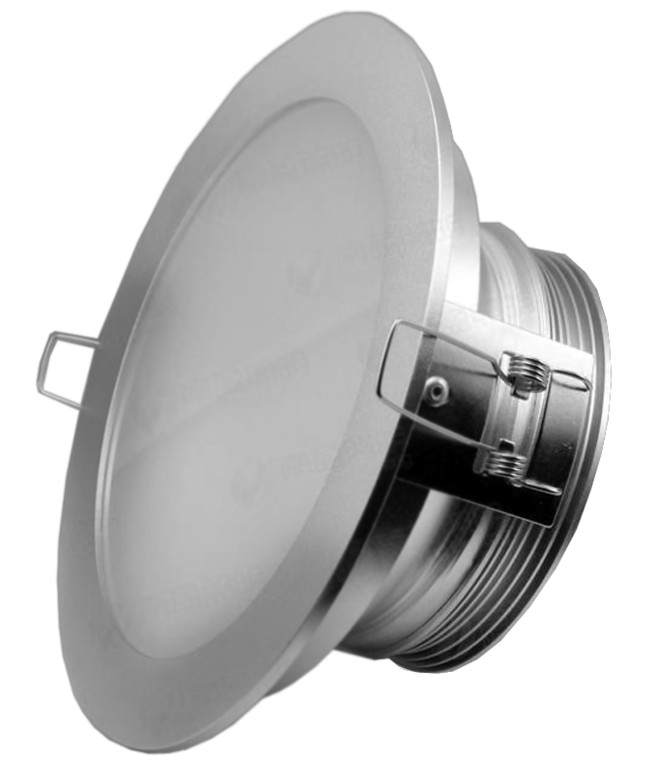

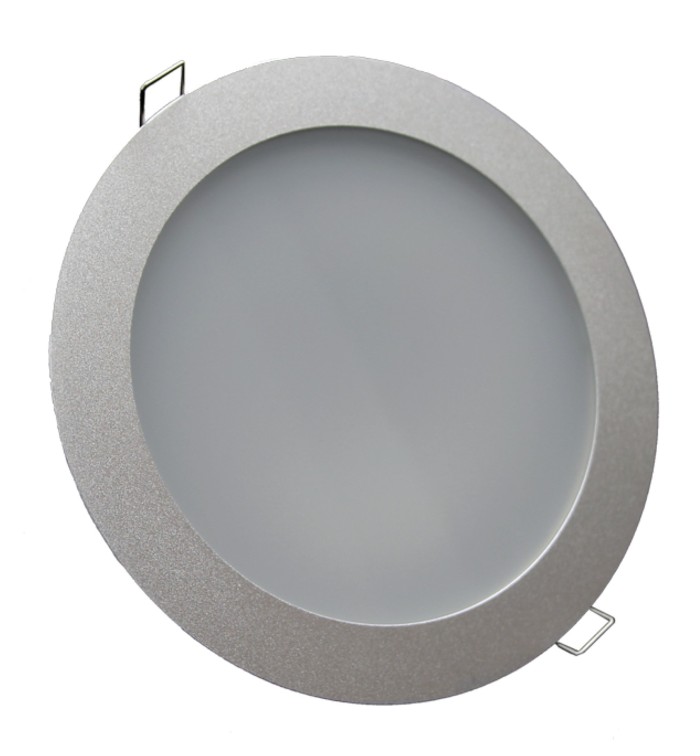

The new series of recessed spotlights with ORION LED technology is a product easy to install, economical, very sturdy and long lifetime.

They are equipped with a diffuse and uniform light distribution with Led light sources from 9w to 30W with 1260-4200lm. The devices are available in different sizes (diameter 143, 180, 190 and 230mm) that cover a vast array of holes recessed.

Technical specifications

Body: Die-cast aluminum structure with low copper content;

Power: 12-24 VDC -240 VAC, Class I and II, IP54;

Color Temperature: Warm White 3000°K, Neutral White 4000°K, Cold White (5000° or 6000° K), Red, Blu, Green, RGB;

Dimmering: Upon request predisposition for dimming analog / digital;

Ceiling thickness: 1 to 25mm;

LED efficiency: 140 lm/watt;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE

Conforms to the group of risk-free RG=0; IEC 62471;

  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

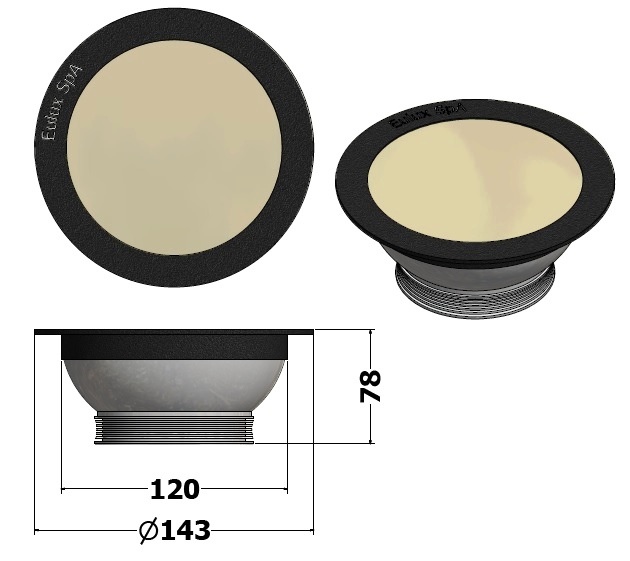

ORION09

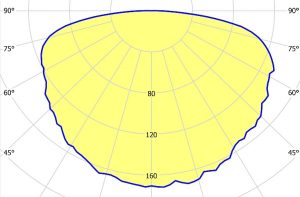

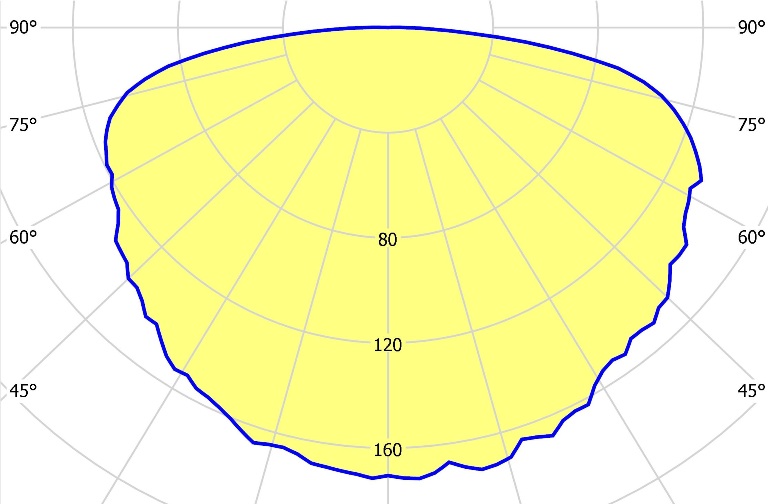

Photometric Dimensions


9 Watt, 3 LED, 1260Lm (equiv. Halogen 60 Watt), Beam angleo 170°, Hole size 120mm

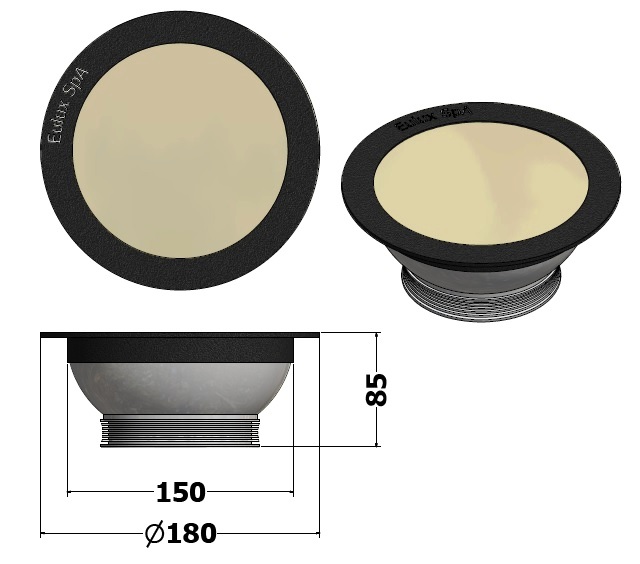

ORION12

Photometric Dimensions


12 Watt, 4 LED, 1680Lm (equiv. Halogen 100 Watt), Beam Angle 170°, Hole size 150mm

ORION20

Fotometrica Dimensioni


20 Watt, 8 LED, 2800Lm (equiv. Halogen 150 Watt), Beam Angle 170°, Hole size 170mm

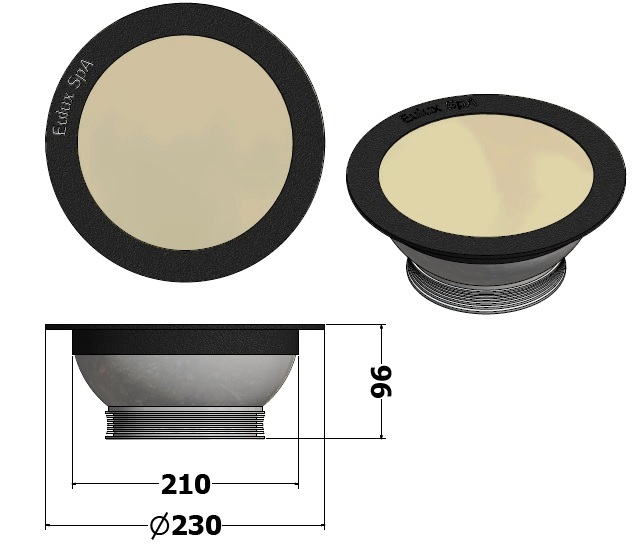

ORION30

Fotometrica Dimensioni


30 Watt, 9 LED, 4200Lm (equiv. Halogen 300 Watt), Beam Angle 170°, Hole size 210mm

ORION40

Fotometrica Dimensioni


40 Watt, 12 LED, 4200Lm (equiv. Halogen 300 Watt), Beam Angle 170°, Hole size 210mm
