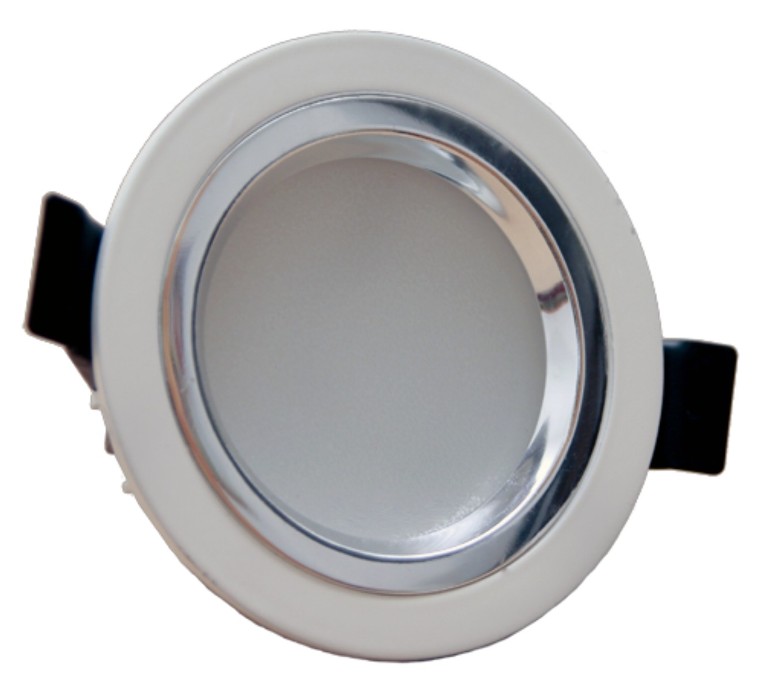

LED recessed spotlights CAUDIO

LED recessed spotlights CAUDIO

Downlights CAUDIO with LED technology is a product with the best value for money on the market. The dark light allows you to have perfectly lit environments, but in a pleasant manner.

The devices are available in six sizes (143, 180, 190 and 230mm) and cover a vast array of holes to be built. They are fitted with LED light sources from 4 to 40W with 560-5520lm.

Technical specifications

Body: Die-cast aluminum structure with low copper content;

Power: 12-24 VDC -240 VAC, Class I and II, IP54;

Color Temperature: Warm White 3000°K, Neutral White 4000°K, Cold White (5000° or 6000° K), Red, Blu, Green, RGB;

Dimmering: Upon request predisposition for dimming analog / digital;

Ceiling thickness: 1 to 25mm;

LED efficiency: 140 lm/watt;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE

Conforms to the group of risk-free RG=0; IEC 62471;

  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

CAUDIO04

Photometric Dimensions


4 Watt, 2 LED, 560Lm (equiv. Halogen 35 Watt), Beam Angle 150°, Hole Size 75mm

CAUDIO07​

Photometric Dimensions


7 Watt, 3 LED, 980Lm (equiv. Halogen 50 Watt), Beam Angle 150°, Hole size 110mm

CAUDIO12

Photometric Dimensions


12 Watt, 6 LED, 1680Lm (equiv. Halogen 100 Watt), Beam angle 150°, Hole size 110mm

CAUDIO20

Photometric Dimensions


20 Watt, 8 LED, 2800Lm (equiv. Halogen 200 Watt), Beam Angle 150°, Hole size 170mm

CAUDIO30

Photometric Dimensions


30 Watt, 9 LED, 4200Lm (equiv. Halogen 300 Watt), Beam Angle 150°, Hole size 170mm

CAUDIO40

Photometric Dimensions


40 Watt, 12 LED, 5600Lm (equiv. Halogen 400 Watt), Beam Angle 150°, Hole size 210mm
