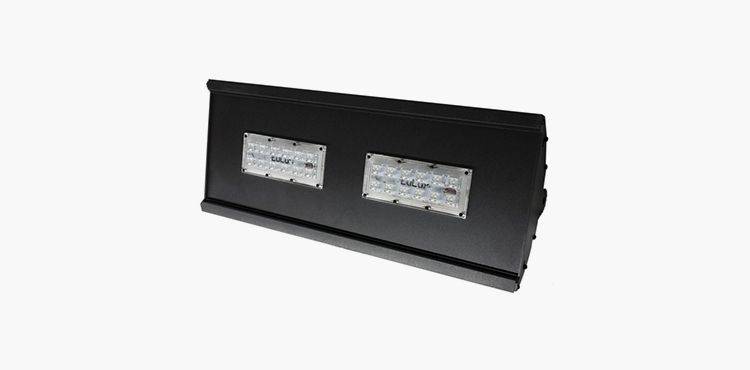

LED projector “SYNTESY”

LED projector “SYNTESY”

The projectors SINTESY born from the need to have great performances, like those of the SINTESY, with reduced
structural dimension and the optical unit.
Elegant design opens the door to new aesthetic in the world of lighting fixtures, especially the SINTESY does lightness and ductility its strength.

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3

Structure available colors

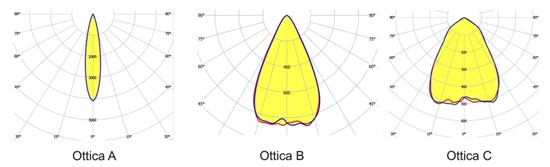

Photometrics now available


Power consumption 45 Watt
Replaces SAP 100 and JM100
Luminous intensity on the LED 6000 lm
Number of LED* 12
Weight** 2,8 kg

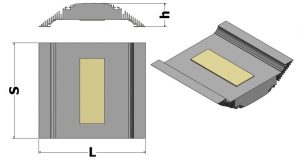

Dimensions S=30; L=24,5; H=6,5;


Power consumption 90 Watt
Replaces SAP250 and JM250
Luminous intensity on the LED 11200lm
Number of LED* 24
Weight** 4,8 kg
Dimensions S=45; L=24,5; H=6,5;

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.


OpLUCO: Sistema elettronico di controllo per autoregolazione dell’illuminazione a LED;

OpCE1: Kit d’emergenza per lampade a LED;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;

OpRAYBOX: Scaricatore di sovratensione 20KA montato nell’armatura;

OpGRID: Griglia di protezione;
