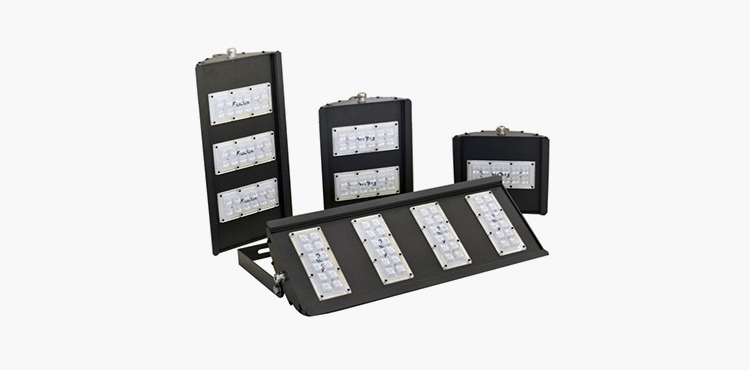

The projectors DRACO_LP use the same LED technology and the same electronics parts of DRACO.
The strengths of these projectors are a better quality/price ratio and a much lighter structure of DRACO.
Technical Specifications
Structure: Realized in aluminum with low copper content;
Power: 110-270Vac, efficiency 94%, PFC>0,95, IP65 CLASS I and II+T;
Color Temperature: 5000°K (choice of 3000°, 4000° or 6000° K);
Reference standards
|
|
|

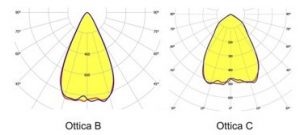

Photometrics now available
Structure available colors
Swivel bracket 360°
Draco_LP 30
| Power consumption | 30 Watt |  |
| Replaces | SAP 70 and JM70 | |
| Luminous intensity on the LED | 4980 lm | |
| Number of LEDs* | 12 | |
| Weight** | 2,4 kg | |
| Dimensions | S=20; L=24,5; H=6,5; |
Draco_LP 60
| Power consumption | 60 Watt | |
| Replaces | SAP150 and JM250 | |
| Luminous intensity on the LED | 9960 lm | |
| Number of LEDs* | 24 | |
| Weight** | 2,8 kg | |
| Dimensions | S=30; L=24,5; H=6,5; |
Draco_LP 90
| Power consumption | 90 Watt | |
| Replaces | SAP250 | |
| Luminous intensity on the LED | 14940lm | |
| Number of LEDs* | 36 | |
| Weight** | 3,6 kg | |
| Dimensions | S=45; L=24,5; H=6,5; |
Draco_LP 120
| Power consumption | 120 Watt | |
| Replaces | JM400 | |
| Luminous intensity on the LED | 19920 lm | |
| Number of LEDs* | 48 | |
| Weight** | 4,8 kg | |
| Dimensions | S=45; L=24,5; H=6,5; |
Draco_LP 180
| Power consumption | 180 Watt | |
| Replaces | JM600 | |
| Luminous intensity on the LED | 29880 lm | |
| Number of LEDs* | 72 | |
| Weight** | 5 kg | |
| Dimensions | S=45; L=49; H=6,5; |
Draco_LP 300
| Power consumption | 300 Watt | |
| Replaces | JM1000 | |
| Luminous intensity on the LED | 49800 lm | |
| Number of LEDs* | 120 | |
| Weight** | 10 kg | |
| Dimensions | S=60; L=49; H=6,5; |
Draco_LP 600
| Power consumption | 600 Watt | |
| Replaces | JM2000 | |
| Luminous intensity on the LED | 99600 lm | |
| Number of LEDs* | 216 | |
| Weight** | 16 kg | |
| Dimensions | S=80; L=73,5; H=6,5; |
* This value may be subject to change without notice, so please ask for confirmation when ordering.
** +/- 5%.
OpLUCO: Sistema elettronico di controllo per autoregolazione dell’illuminazione a LED;
OpCE1: Kit d’emergenza per lampade a LED;
OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;
OpRAYBOX: Scaricatore di sovratensione 20KA montato nell’armatura;
OpGRID: Griglia di protezione;
