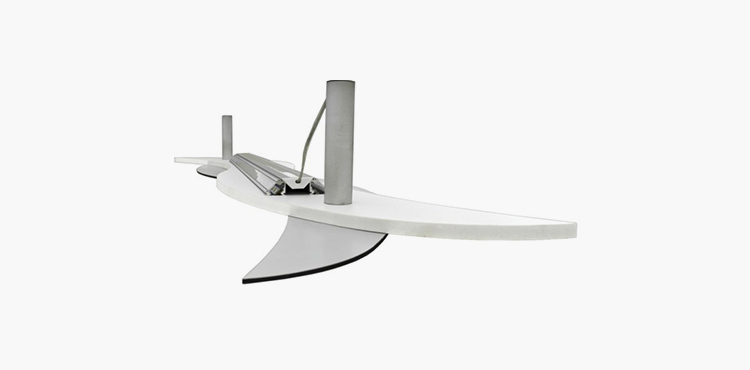

LED CEILING “PLES”

LED CEILING “PLES”

The PLES are reflective ceiling with innovative design comes in a soft texture in the form, characterized by a perfect balance between size and output.

They are particularly suitable for environments with low or average ceiling for those who want a light effect environment extremely comfortable and widespread (UGR=0).

Technical specifications

Body: Realized in aluminum and forex contour;

Power: 110-270Vac, efficiency 94%, PFC>0,95, IP65 CLASS I and II+T;

Color Temperature: 5000°K (choice of 3000°, 4000° K);

Mounting: at suspended;

LED efficiency: 166 lm/watt;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE

Conforms to the group of risk-free RG=0; IEC 62471;

  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

Dimensions

Photometrics now available

PLES30

Power consumption 30 Watt
Number of LED* 96
Luminous intensity on the LED 4980 lm

PLES60

Power consumption 45 Watt
Number of LED Led* 144
Luminous intensity on the LED 7470 lm

* This value may be subject to change without notice, so please ask for confirmation when ordering.
