LED CEILING “PLEDISAT”

LED CEILING “PLEDISAT”

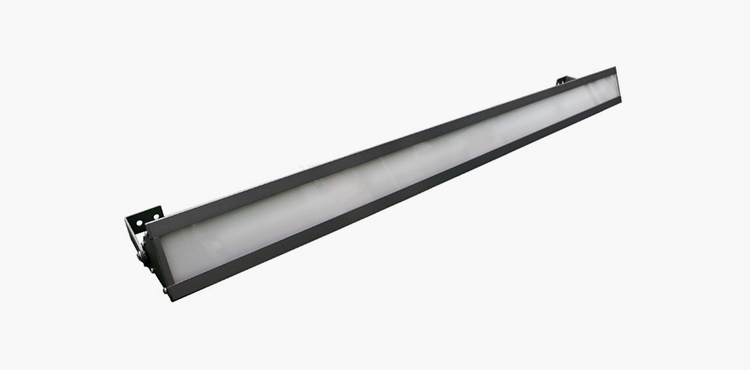

The PLEDISAT is the new PLEDOUT glass with a satin finish and bright surface perfectly smooth. It is particularly
suitable for environments where you need a strong illumination without glare (UGR <19).

Available in two models with a perfect balance between size and output, for a diffused light effect like no other on the market.

Customers tend to use LED tubes and insert them in neon ceiling lights, replacing the classic neon, with adaptation cabling. As you can read from the PDF and from the following link, this technique causes  to be lost the CE certification into the ceiling light:

Lampade a LED con attacco G5 e G13: rischi e responsabilità (ASSIL – TECHNICAL STATEMENT)

http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html

Technical specifications

Body: Realized in aluminum with low copper content;

Power: 110-270Vac, efficiency 94%, PFC>0,95, IP65 CLASS I and II+T;

Color Temperature: 5000°K (choice of 3000°, 4000° K);

Mounting: Surface mounted or suspended on the wall;

Photobiological safety: Conforms to the group of risk-free RG0, IEC 62471;

LED efficiency: 166 lm/watt;

Reference standards

[symbols ids=”2011/65/CE, 2006/95/CE, 2004/108/CE”]
Conforme al gruppo di rischio esente RG=0;norma IEC 62471;
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

Dimensions

Type of attacks

Body colours available

Photometrics now available

PLEDISAT1

Power consumption 20 Watt
Number of LED* 48
Luminous intensity on the LED 3500 lm
Replace 2×18 to neon
Dimensions 600x100x64 mm
Weight** 1,9 Kg

PLEDISAT3

Power consumption 35 Watt
Number of LED* 96
Luminous intensity on the LED 6125 lm
Replace 2×36 to neon
Dimensions 1200x100x64 mm
Weight** 3,2 Kg

PLEDISAT6

Power consumption 50 Watt
Number of LED* 144
Luminous intensity on the LED 9100 lm
Replace 2×58 to neon
Dimensions 1500x100x64 mm
Weight** 4 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

OpLUCO: Sistema elettronico di controllo per autoregolazione dell’illuminazione a LED;

OpCE1: Kit d’emergenza per lampade a LED;

OpDALI: sistema elettronico di controllo dell’illuminazione a LEd con protocollo standard DALI;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;
