GLIM Ceiling LED

GLIM Ceiling LED

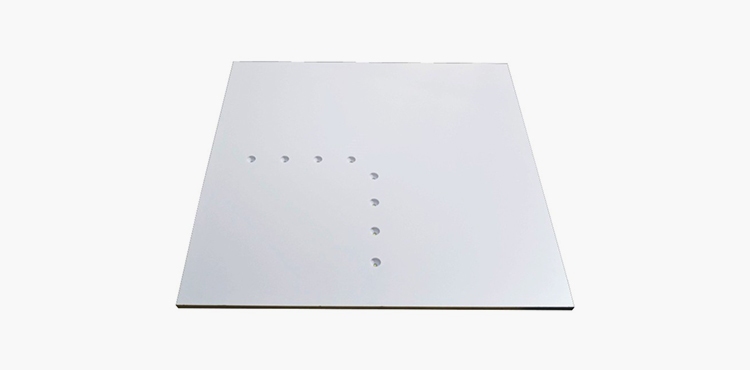

The ceiling 60x60cm GLIM are designed to ensure full freedom of management and customization of light in space.

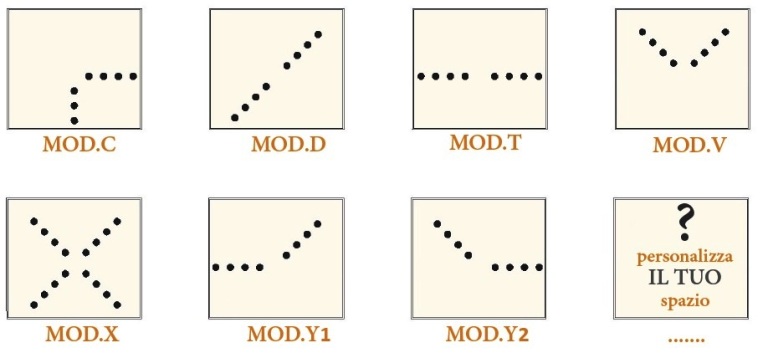

The entire range of GLIM allows the choice of the forms in a simple, functional, but also magical and poetic. Exacerbating the connective elements of the project, the lighting modules become modular building elements in the space to create your own base of light.

Only with GLIM you can customize the look of your lighting environment (beyond the basic range can also produce elements of the project and the customer’s instructions).

Customers tend to use LED tubes and insert them in neon ceiling lights, replacing the classic neon, with adaptation cabling. As you can read from the PDF and from the following link, this technique causes  to be lost the CE certification into the ceiling light:

Lampade a LED con attacco G5 e G13: rischi e responsabilità (ASSIL – TECHNICAL STATEMENT)

http://www.luxemozione.com/2013/01/tubi-led-vs-fluorescenti-vera-convenienza.html

Technical specifications

Body: Realized in aluminum with low copper content;

Power: 110-270Vac, efficiency 94%, PFC>0,95, IP65 CLASS I and II+T;

Color Temperature: 5000°K (choice of 3000°, 4000° K);

Mounting: Recessed in to square 60x60cm (Or surface mounted with the use of OpSP);

Photobiological safety: Conforms to the group of risk-free RG0, IEC 62471;

Glass: Screen Polycarbonate 10-year warranty against yellowing, IK08;

LED efficiency: 166 lm/watt guaranteed minimum at 85°;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE

Conforme al gruppo di rischio esente RG=0;norma IEC 62471;

  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • UNI EN 12464-1

Dimensions



Photometrics now available

Structure  colors surface mounted available

GLIM 20

Power consumption 20Watt
Number of LED* 8
Luminous intensity on the LED 3320 lm
Weight** 2,4 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

OpLUCO: Sistema elettronico di controllo per autoregolazione dell’illuminazione a LED;

OpCE1: Kit d’emergenza per lampade a LED;

OpSP: struttura per montaggio a pilone;

OpDALI: sistema elettronico di controllo dell’illuminazione a LEd con protocollo standard DALI;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;
