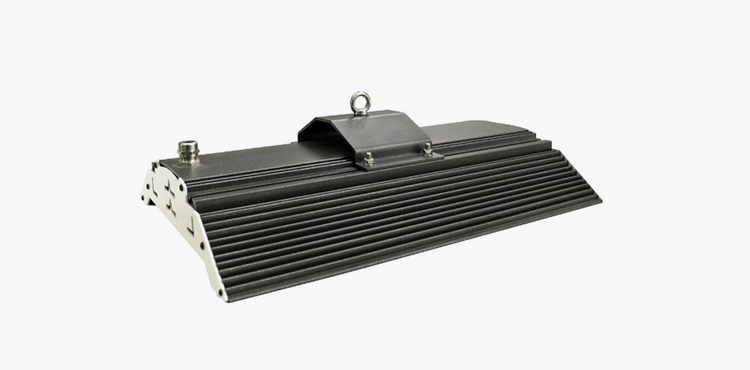

“DRACO_HB” LED reflectors

“DRACO_HB” LED reflectors

The DRACOHB high bay led newly developed that have the highest luminous efficiency on the market.

The design has focused on three aspects that are particularly important to your business: improve energy efficiency, increase productivity and safer production processes.

The workplace lighting is becoming increasingly important because in addition to give light to the paths must exploit the areas, improve the safety and quality of the company.

SEE WELL, WORK BETTER

Technical Specifications

Structure: Realized in aluminum with low copper content;

Power: 110-270Vac, efficiency 94%, PFC>0,95, IP54 (base) o IP66, CLASS I and II+T;

Color Temperature: 5000°K (choice of 3000°, 4000° K);

Coating: epoxy powders, standard Anthracite RAL7014 (optionally available other RAL) Resistant to UV rays and atmospheric agents;

Mounting: The projector is equipped with an elegant and effective system of stainless steel mounting with hook eyebolt;

Optics: optics 60° or 96° or 120°;

LED efficiency: 166lm/watt guaranteed minimum at 85°;

Glass: Screen polycarbonate 10-year warranty against yellowing, IK08;

Reference standards

  • 2011/65/CE
  • 2006/95/CE
  • 2004/108/CE
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3

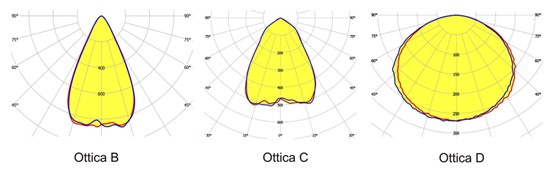

Photometrics available

Structure available colors

Basic color: Anthracite gray (RAL 7016).

Hook eyebolt

Draco_HB 30

Power consumption 30 Watt
Replaces SAP 70 and JM70
Luminous flux on the LED 4980 lm
Number of LEDs* 12
Weight** 4,3 kg

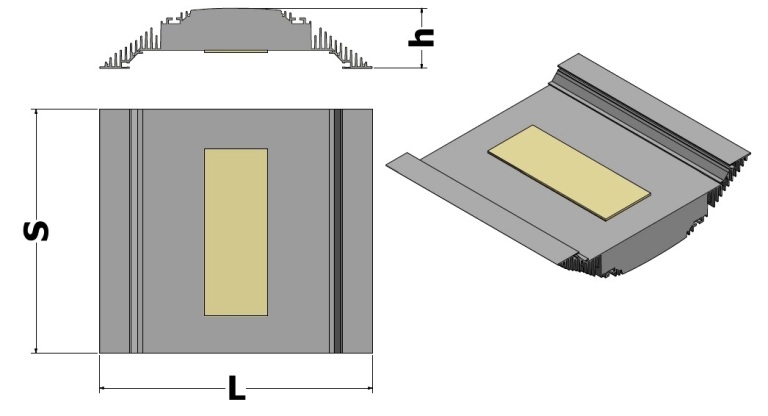

Dimensions S=15; L=34; H=7,5;

Draco_HB 60

Power consumption 60 Watt
Replaces SAP150 and JM250
Luminous flux on the LED 9960 lm
Number of LEDs* 24
Weight** 4,4 kg
Dimensions S=30; L=34; H=7,5;

Draco_HB 90

Power consumption 90 Watt
Replaces SAP250
Luminous flux on the LED 14940 lm
Number of LEDs* 36
Weight** 6,4 kg
Dimensions S=30; L=34; H=7,5;

Draco_HB 120

Power consumption 120 Watt
Replaces JM400
Luminous flux on the LED 19920 lm
Number of LEDs* 48
Weight** 6,5 kg
Dimensions S=45; L=34; H=7,5;

Draco_HB 180

Power consumption 180 Watt
Replaces JM600
Luminous flux on the LED 29880 lm
Number of LEDs* 72
Weight** 10,15 kg
Dimensions S=60; L=34; H=7,5;

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

Opzioni:

OpLUCO: Sistema elettronico di controllo per autoregolazione dell’illuminazione a LED;

OpCE1: Kit d’emergenza per lampade a LED;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;

OpRAYBOX: Scaricatore di sovratensione 20KA montato nell’armatura;
