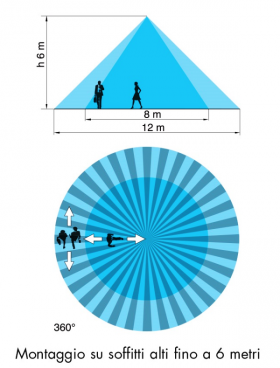

The Op_RILEV is a presence detector with a detection range of 120º and with a detection distance of up to about 7-10 meters.
This device can capture invisible infrared emissions from any source of heat without emitting any radiation. The detector activates the output of the circuit when a heat source moves in front of the switch and shuts off once it is stopped to pick up the motion after an adjustable delay time. It is
extremely useful to drive the ignition or automatic shutdown of our LED products. You can adjust the
delay time between 5 sec, 30 sec, 1 min, 3 min, 5 min and 8 min to better suit your needs.
Op_RILEV01
IP | 20 |
Light beam | 120° |
Temperature | -20°C +40°C |
Detection distance | 12 mt |
Dimensions | 56x34x25 with diameter of 15mm |

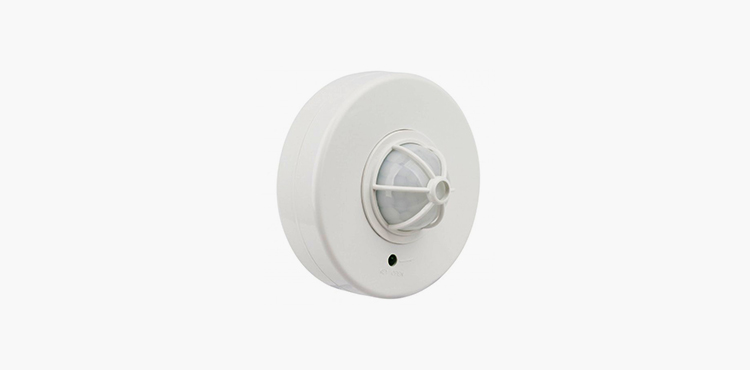

Op_RILEV02
IP | 20 |
Light beam | 360° |
Temperature | -20°C +40°C |
Detection distance | 6 mt |
Dimensions | Diameter of 115x30mm |
