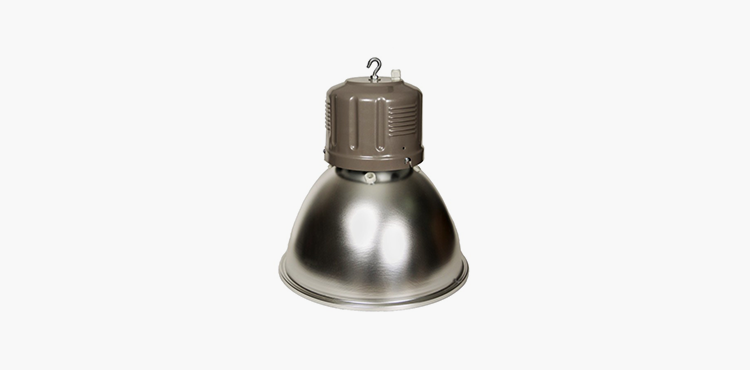

“CIRENE” LED reflectors

“CIRENE” LED reflectors

The EuLux industrial reflectors of the CIRENE series utilize LED technology to provide greater energy efficiency for the same consumption. We offer four typologies to better meet the needs of our customers.

CIRENE is a versatile device designed to illuminate, with maximum efficiency, spaces used for social and economic activities such as commercial, craft, industrial and sports structures, exhibitions and stores.

Good lighting helps concentration, reduces eye fatigue and increases productivity.

CIRENE with higher brightness and brilliance, lower consumption, and thanks to the long-term reduction in maintenance.

Technical Specifications

BODY: In aluminum with low copper content;

POWER SOURCE: 110-270 Vac, efficiency 94%, PFC>0,95, IP54 (base) or IP66, CLASSE I and II +T;;

COLOR TEMPERATURE: 5000°K (choice: 3000° K, 4000°K);

MOUNTING: the projector has an elegant and effective mounting system with hook eyebolt;

OPTICS: Optics 60°, 96° or 120°;

GLASS: Screen Polycarbonate 10-year warranty against yellowing;

EFFICIENCY LED: 166 lm/watt guaranteed minimum at 85°;

Reference standards

[symbols ids=”2011/65/CE, 2006/95/CE, 2004/108/CE”]
  • EN 60598-1
  • EN 62471
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3

Dimensions

Photometric available

CIRENE 60

It generates a maximum brightness of 308 lux if placed 6 meters in heights and density every 25 square meters.

Power absorbed LED 60Watt
Number of LED* 24
Can replace SAP150 e JM250
Luminous intensity on the LED 9960 lm
Weight** 7,5 Kg

CIRENE 90

It generates a maximum brightness of 335 lux if placed 8 meters in heights and density every 25 square meters.

Power absortbed LED 90Watt
Number of LED* 36
Can replace SAP250
Luminous intensity on the LED 14940 lm
Weight** 7,5 Kg

CIRENE 120

It generates a maximum brightness of 3070 lux if placed 8 meters in heights and density every 36 square meters.

Power absortbed LED 120Watt
Number of LED* 48
Can replace JM400
Luminous intensity on the LED 19920 lm
Weight** 8,2 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

Options

OpLUCO: Electronic control system for self-regulation of LED lighting;

OpCE1: Emergency Kit for LED lamps;

OpINLUX: Predisposition for remote light control PITECO;

OpRAYBOX: Surge protection 20KA mounted into the street light;
