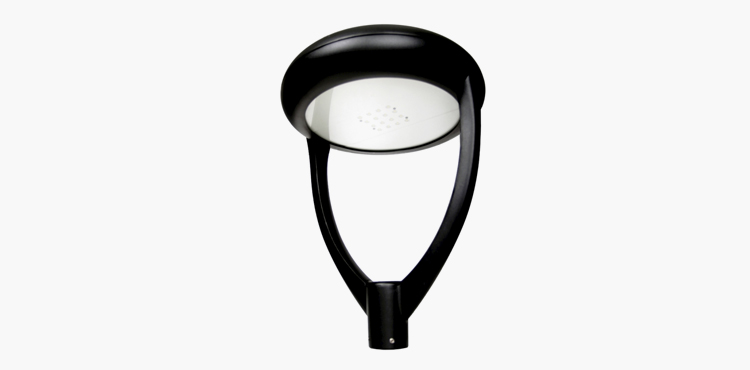

“AURA” LED Urban Lamps

“AURA” LED Urban Lamps

AURA are street lighting with elegant and prestigious design for an urban design of excellence.

With innovative and harmonious forms, elegantly fit in urban scenarios, in town centers and or pedestrian areas. Available in different configurations to meet all customer needs possible.

Technical Specifications

Structure: Made of die-cast aluminum with low copper content.
Coating: in epoxy poweder resistant to UV rays and weathering.
Power: 110-270 Vac, efficiency 94%, PFC>0,95, IP65, class I or II+T.
Color temp: 5000°K (choice of:  3000°, 4000°K).
Efficiency LEDs: 166lm/watt.
AURA-Line Mounting: a reach or pole top with adjustable arm in all directions, for arms or poles with a diameter of 60 mm.
AURA-Tes Mounting: urban design top pole with aluminum arms, for poles with a diameter of 60 mm.
Opening: From the bottom with stainless steel locking screw with fall arrest system.
Maintenance: Maintenance operations in complete operator’s safety thanks to the automatic disconnect system at the opening of the device.
Glass: transparent tempered glass, 5 mm thick, resistant to impacts and thermal shocks.
Optics: Compliant with current regulations and laws in force in the field of light pollution.
Sealing gaskets: silicone, around the optical compartment to ensure the optimal watertightness.
Screws: external in stainless steel, internal in galvanized iron.
References standards: EN 60598-1, EN 62471, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI EN 10819, UNI11248, EN13201.
Guidelines: 2011/65/CE, 2006/95/CE, 2004/108/CE.

Photometric now available

“AURA” LED Urban Lamps is available in the following models:

AURA-Line AURA-Tes

Use the LED more perfomanti on the market (the version that replaces a 30watt SAP100Watt) and is among the products have the greatest height ratio of spacing -palo. Street furniture with mounting pole head with aluminum arms for poles diameters of 60mm.

POWERS PROPOSED

AURA 20

Power Consumption 20 Watt
Replaces SAP70, JM70 and MBF80
Luminous Intensity on the LED 3320 lm
Number of LED* 12
Weight** 8,3 Kg

AURA 30

Power Consumption 30 Watt
Replaces SAP100,JM100 and MBF125
Luminous Intensity on the LED 4980 lm
Number of LED* 12
Weight** 8,30 kg

AURA 40

Power Consumption 40 Watt
Replaces JM150 and MBF250
Luminous Intensity on the LED 6640 lm
Number of LED* 12
Weight** 9,20 Kg

AURA 60

Power Consumption 60 Watt
Replaces SAP150 and JM250
Luminous Intensity on the LED 9960 lm
Number of LED* 24
Weight** 9,3 Kg

AURA 90

Power Consumption 90 Watt
Replaces SAP250 and JM400
Luminous Intensity on the LED 14940 lm
Number of LED* 24
Weight** 9,30 Kg

AURA 120

Power Consumption 120 Watt
Replaces SAP400
Luminous Intensity on the LED 19920 lm
Number of LED* 24
Weight** 9,30 Kg

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.

Opzioni

OpDARF1: Dimmering autonomo senza possibilità di settaggio;

OpDAR2: Dimmering autonomo con impostazione dell’ora di attivazione;

OpINLUX: Predisposizione per regolatore di flusso e/o telecontrollo PITECO;

OpRAYBOX: Scaricatore di sovratensione 20KA montato nell’armatura;
