Walkways “SKALO”

Walkways “SKALO”

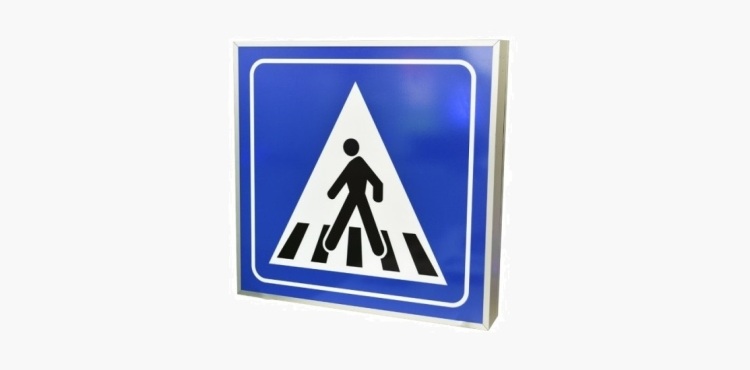

Skalo is a new system for the illumination of walkways, to reach the highest levels of safety for pedestrians.

It ‘a system consisting of load-bearing frame, from an illuminator LEDs and a system of locking arms

CONSTRUCTION FEATURES:

The system is constituted by a supporting frame, by a led lighting and a system of locking arms.
– The supporting frame is formed by four walls shaped in anodised aluminum. Inside it is welded around the entire perimeter that forms the backbone of the system resistant. On the flat surface are fixed to the LED strips for the back lighting of the panel and on the upper part (always inside) for fixing the power driver.
– The panel Signage biene hooked (from both sides) through angular with screws which allow the removability of the same panel for the internal inspection of the components.
– The illuminator is placed in the lower part of the frame with the same dimensions adapted to receive three tabs from 24/36 led.

Technical specifications

Body Aluminum sheet, Double side;
Power 110-270 Vac, efficiency 94%, PFC>0,95, IP65
Color temp. 5000°K (choose of: 3000°K, 4000°K)
Class II + T or CLASSE 1
Reference standard EN 60598-1, EN 55015, EN 61547, EN 61000-3-2, EN 6100-3-3, UNI11248, EN13201

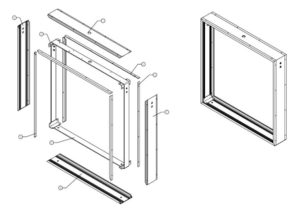

Exploded building

Exploded constructive frame door panel consists of 4 drawn and shaped by internal bracing angle and longitudinal fixed using screws and wire welding.

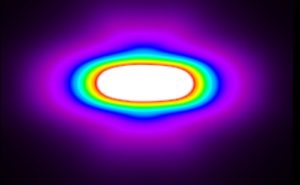

Photometric now available



SKALO 60

Watt 60+60 Watt
Lumen panel 7500lm
Lumen headlight 9000 lm
Number of LEDs* 24
Weight** 12 kg
Dimensions A=600; B=600; C=150;

SKALO 90

Wattt 90+90 Watt
Lumen Panel 10500lm
Lumen headlight 13500 lm
Number of LEDs* 36
Weight** 17,5 kg
Dimensions A=900; B=900; C=150;

* This value may be subject to change without notice, so please ask for confirmation when ordering.

** +/- 5%.
